Product Details

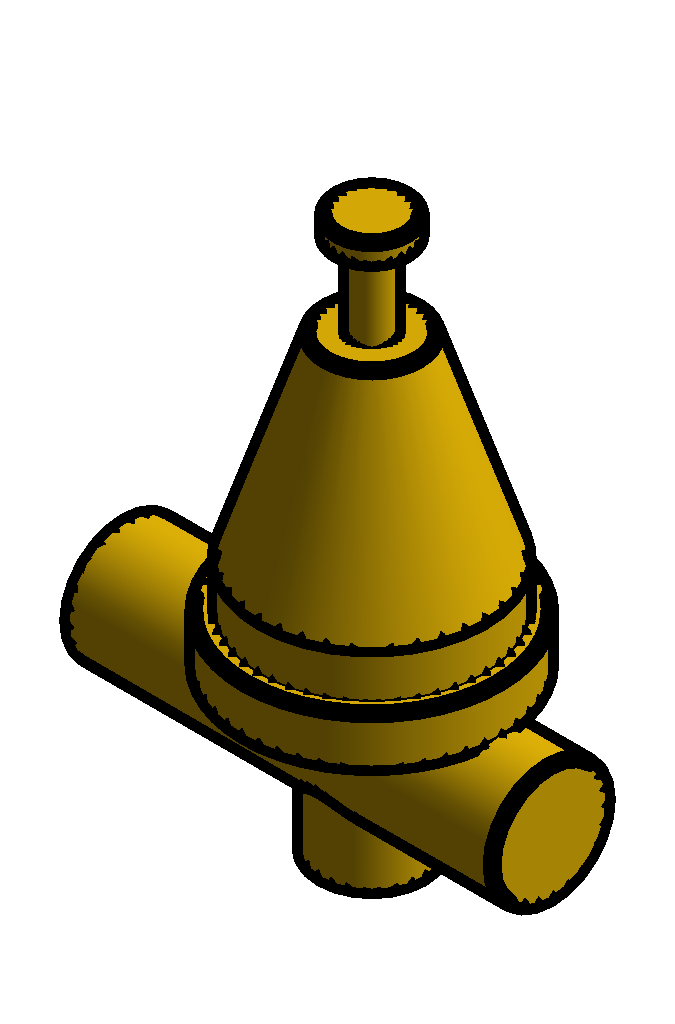

Pressure_Reducing_Valve-Zurn_Wilkins-Model_500_Threaded-(0.5-3_Inch)
Category
Pipe Accessories
Description
| Property | Value |
|---|---|
| DimA2 | 0.2135 ft |
| Product Page URL | |
| BoltR | 0.0156 ft |
| Max working water temperature | 180° F |
| DimA | 0.4271 ft |
| Standards Compliance | ASSE, IAPMO, CSA, City of LA |
| Type Comments | Single union FNPT inlet x FNPT outlet |
| Repair Kit | |
| Nominal Size | 1 in |
| URL | |
| BellH | 0.0521 ft |
| BoltL | 0.1146 ft |
| HexH | 0.0833 ft |
| Tail | 0.1667 ft |
| Manufacturer | Zurn Wilkins |
| CapR | 0.0635 ft |
| BellTR | 0.0521 ft |
| BellR | 0.138 ft |
| BodyR | 0.07 ft |
| HexR | 0.0833 ft |
| Instruction Sheet | |
| DimB | 0.5729 ft |
| Product data url | |
| Model | 500 |
| Specification Sheet | |
| Reduced pressure range | 25 to 75 psi |
| Max working water pressure | 300 psi |
| DimC | 0.1354 ft |
| NomRad | 0.0417 ft |
| Assembly Code | D2090800 |
| Description | Water Pressure Reducing Valve with Integral By-pass Check Valve |
| BoltHR | 0.0313 ft |
| Weight | 6 lbs. / 3.0 kg |
| DimD | 3.3125 in |
| Property | Value |
|---|
| Property | Value |
|---|---|
| Use Annotation Scale |
Product Resource download links.
