Product Details

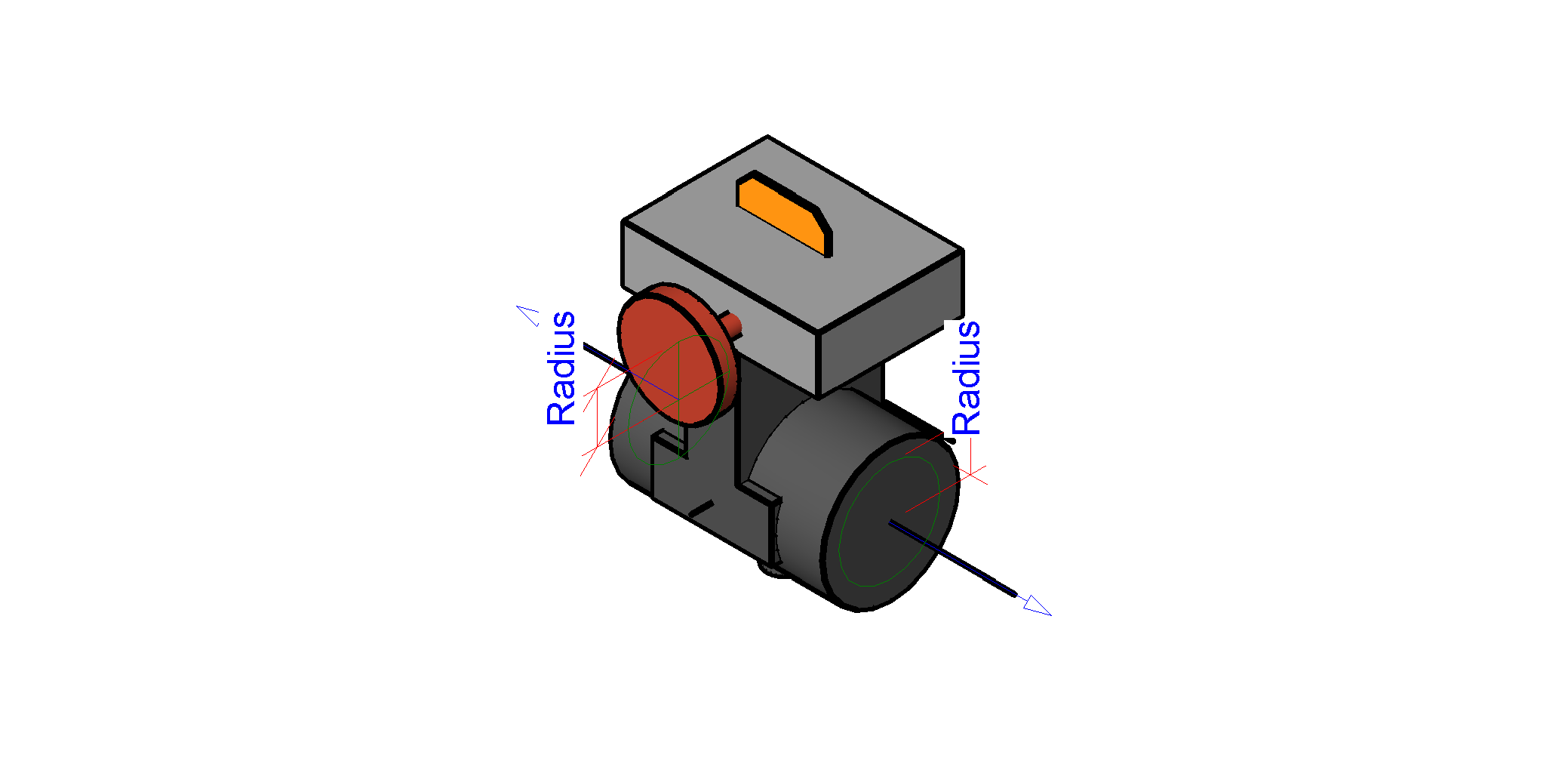

Butterfly_Valve-Zurn_Wilkins-Model_49GVIC_Grooved-(2.5-10_Inch)
Category
Pipe Accessories
Description
| Property | Value |
|---|---|
| Nominal Radius | 0.1042 ft |
| Body Diameter | 0.2917 ft |
| Body Radius | 0.1458 ft |
| Property | Value |
|---|---|
| Model | 49GVIC |
| Weight | 9.4 lbs (4.2 kg) |
| Specification Sheet URL | |
| Bracket Height | 0.3333 ft |
| Bolt Location | 0.0938 ft |
| Handle Length | 0.3333 ft |
| Standards Compliance | UL, C-UL, FM, NSF 61-G |
| Bracket Thickness | 0.0104 ft |
| URL | |
| Body Length | 0.5 ft |
| Type Comments | Grooved Connections AWWA C606 - Steel |
| Symbol Extension Length | 0.3385 ft |
| Application | Designed for installation on Potable water lines, Irrigation systems, Waterworks connections, and Fire systems. |
| Manufacturer | Zurn Wilkins |
| Symbol Width | 0.0208 ft |
| Handle Location | 0.3125 ft |
| Product data url | |
| Product Page URL | |
| Handle Height | 0.5625 ft |
| Coupling Thickness | 0.099 ft |
| Description | Lead-Free* Butterfly Valve |
| Handle Bolt | 0.0208 ft |
| Assembly Code | D2090800 |
| Handle Radius | 0.125 ft |
| Property | Value |
|---|---|
| Flow | 0 |
| Max Working Water Pressure | 175 lb/(in^2) |
| Hydrostatic Test Pressure | 350 lb/(in^2) |
| Rated Flow | 225 (gal)/min |
| Max Working Water Temperature | 140 degF |
| Property | Value |
|---|---|
| Top Height | 0.7292 ft |
| Nominal Diameter | 0.2083 ft |
| Length | 0.5 ft |
| Property | Value |
|---|---|
| Use Annotation Scale |
