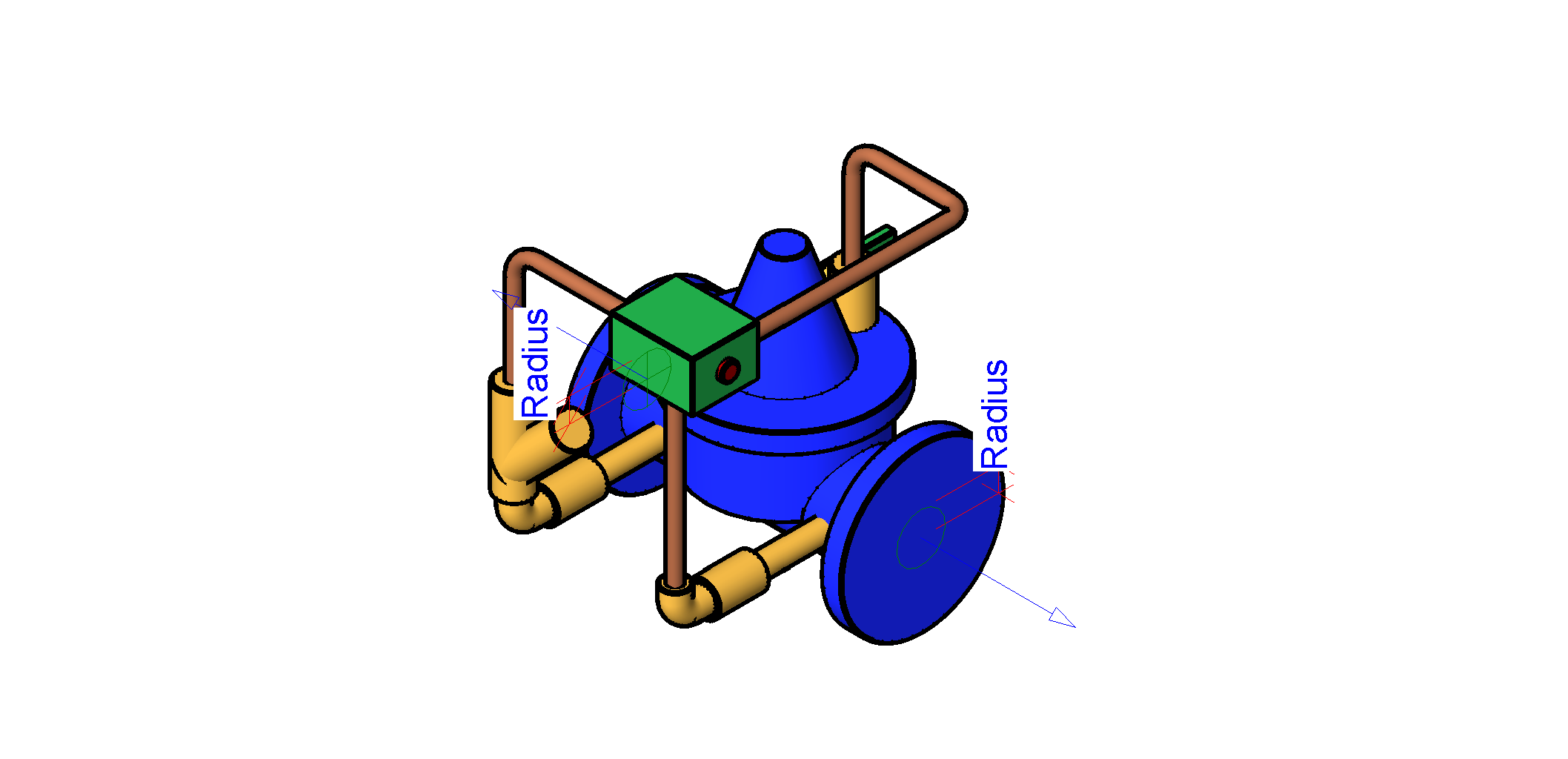

| Ball Valve Handle Length | 0.1875 ft |
| Max. Continuous Flow | 300 (gal)/min |
| Model | ZW206 |
| ACV Product Page URL | View |
| Manufacturer | Zurn Wilkins |
| Tube Bend Radius | 0.0625 ft |
| Type Comments | Lead-Free* Pilot Operated Water Solenoid Valve, ANSI Class 150 Flange, 3/8 inch model SXL strainer, 3/8 inch model 850MXL ball valves |
| DIM X | 0.6094 ft |
| Bottom of SXL to Elbow | 0.0713 ft |
| Product data url | View |
| Nominal Diameter | 0.208333333333333 |
| ACV Specification Sheet URL | View |
| Cap Base Radius | 0.1667 ft |
| Top Radius | 0.25 ft |
| Flange Diameter | 0.5833 ft |
| Description | Zurn Wilkins Solenoid Control Valve |
| Max. Intermittent Flow | 375 (gal)/min |
| Weight | 50 lbf |
| Body Diameter | 0.3333 ft |
| Order Form URL | View |
| Strainer Specification Sheet URL | View |
| Ball Valve | 0.125 |
| Ball Valve Specification Sheet URL | View |
| Pipe length from Body | 0.4072 ft |
| Cover Flange Width | 0.0573 ft |
| Cap Top Radius | 0.0436 ft |
| Flange Width | 0.0572916666666667 |
| DIM C Top of Cover | 0.6146 ft |
| Max Working Water Temperature | 140 degF |
| Nominal Radius | 0.104166666666667 |
| Flange Radius | 0.2917 ft |
| Length Inlet Port to Outlet Port | 0.5 ft |
| Elbow Radius | 0.0156 ft |
| Strainer Product Page URL | View |
| Assembly Code | D2090900 |
| Ball Valve Product Page URL | View |
| SXL | 0.2451 ft |
| Top of Body | 0.2708 ft |
| Min. Continuous Flow | 20 (gal)/min |
| URL | View |
| Body Radius | 0.1667 ft |
| Pipe Length to Cap | 0.75 ft |
| Max Working Water Pressure | 250 lb/(in^2) |
| Standards Compliance | ANSI/AWWA C530, Lead Plumbing Law Certified by IAPMO R&T |
| Application | The Zurn Wilkins Model ZW206 Solenoid Operated Control
Valve is designed to be either fully open or fully closed in
response to an electrical signal to the solenoid pilot assembly.
This valve is equipped with a 3-way electrical solenoidoperated
pilot that can be plumbed to be normally closed
(energize to open) or normally open (energize to close)
providing main valve on/off capabilities. |
| DIM Z Overall Width/Gauge Face | 0.5 ft |
| DIM B Top Lip Radius | 0.3359 ft |
| Product Install & Maintenance Sheet URL | View |
| Top of Cover Height | 0.3076 ft |
