Product Details

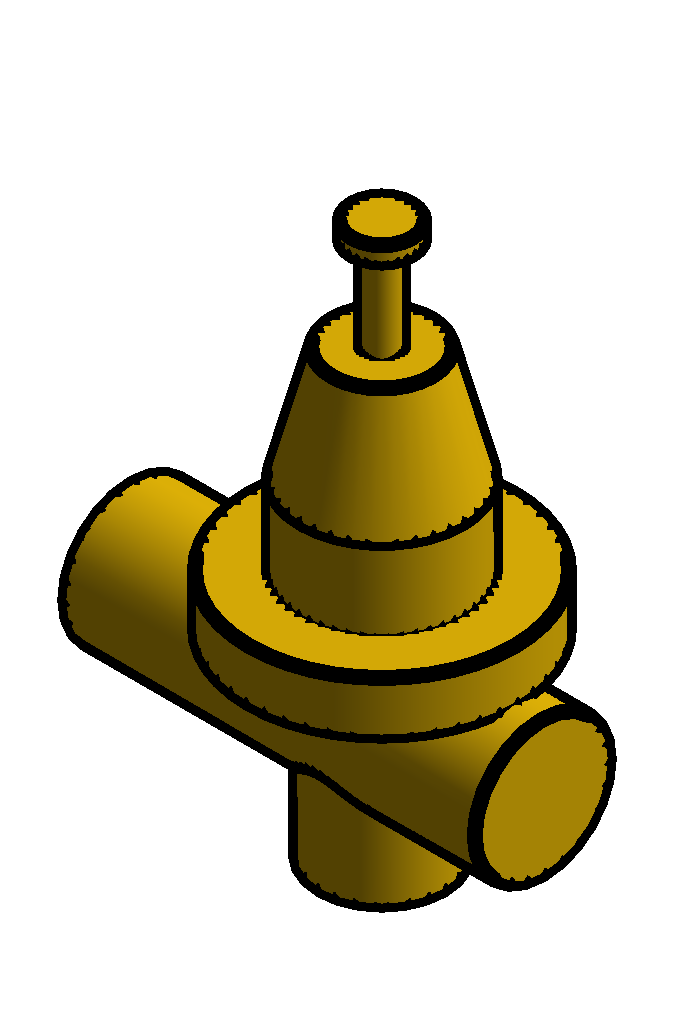

Pressure_Reducing_Valve-Zurn_Wilkins-Model_500XL_Threaded-(0.5-3_Inch)
Category
Pipe Accessories
Description
| Property | Value |
|---|
| Property | Value |
|---|---|
| Model | 500XL |
| Repair Kit | |
| BoltL | 0.0938 ft |
| BellH | 0.0417 ft |
| Nominal Size | 0.5 in |
| Max working water temperature | 180° F |
| HexR | 0.1003 ft |
| DimA | 0.375 ft |
| Manufacturer | Zurn Wilkins |
| Reduced pressure range | 25 to 75 psi |
| HexH | 0.0417 ft |
| Product Page URL | |
| BellTR | 0.0417 ft |
| DimD | 2.75 in |
| URL | |
| BellR | 0.1146 ft |
| Instruction Sheet | |
| DimA2 | 0.1875 ft |
| Product data url | |
| Weight | 3 lbs. / 1.5 kg |
| Standards Compliance | ASSE, IAPMO, CSA, City of LA |
| DimC | 0.1354 ft |
| NomRad | 0.0208 ft |
| Type Comments | Single union FNPT inlet x FNPT outlet |
| Description | Lead-Free* Water Pressure Reducing Valve with Integral By-pass Check Valve |
| Specification Sheet | |
| BoltR | 0.0156 ft |
| Assembly Code | D2090800 |
| Max working water pressure | 300 psi |
| DimB | 0.5 ft |
| Tail | 0.1458 ft |
| CapR | 0.0352 ft |
| BodyR | 0.0417 ft |
| BoltHR | 0.0313 ft |
| Property | Value |
|---|---|
| Use Annotation Scale |
Product Resource download links.
