Product Details

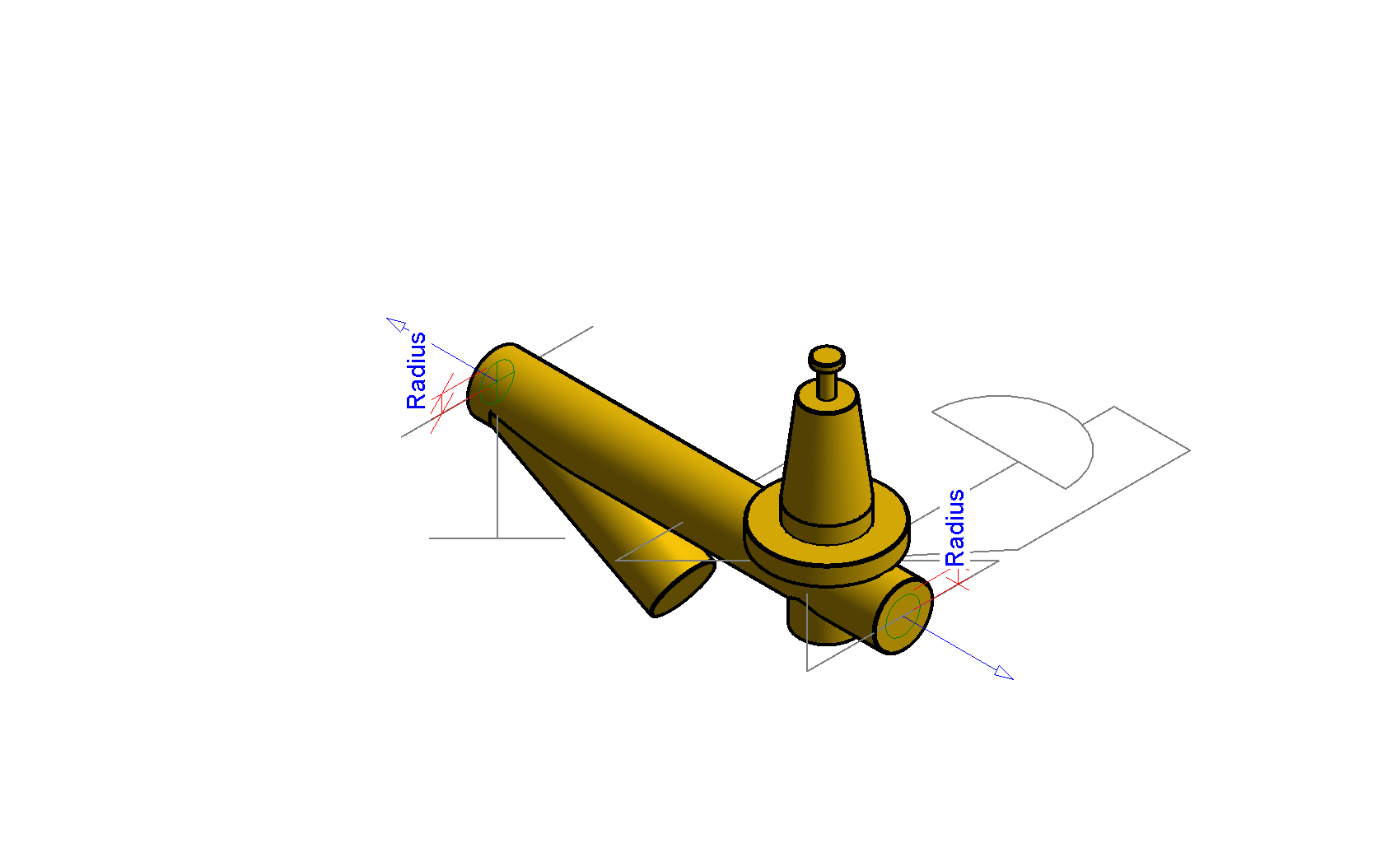

Pressure_Reducing_Valve-Zurn_Wilkins-Model_500XLYSBR_Threaded-(0.5-3_Inch)
Category
Pipe Accessories
Description
| Property | Value |
|---|---|
| Strainer Diameter | 0.1042 ft |
| Property | Value |
|---|---|
| BoltHR | 0.0417 ft |
| Tail | 0.4167 ft |
| Manufacturer | Zurn Wilkins |
| Max working water temperature | 180° F |
| DimA2 | 0.4167 ft |
| DimE | 19.375 in |
| Product data url | |
| DimB | 1.2083 ft |
| HexH | 0.1501 ft |
| Specification Sheet | |
| URL | |
| BodyR | 0.1582 ft |
| BoltR | 0.0208 ft |
| BellTR | 0.1042 ft |
| Model | 500XLYSBR |
| Standards Compliance | ASSE, City of LA |
| Weight | 43 lbs. / 19.5 kg |
| Max working water pressure | 300 psi |
| DimC | 0.25 ft |
| DimA | 0.8333 ft |
| Repair Kit | |
| BoltL | 0.125 ft |
| Type Comments | FNPT inlet x FNPT outlet |
| Instruction Sheet | |
| HexR | 0.1543 ft |
| DimC Strainer | 0.625 ft |
| BellR | 0.3333 ft |
| CapR | 0.1517 ft |
| BellH | 0.0749 ft |
| NomRad | 0.1042 ft |
| DimD | 8 in |
| Assembly Code | D2090800 |
| Nominal Size | 2.5 in |
| Strainer Angle | 45 deg |
| Product Page URL | |
| Description | Lead-Free* Water Pressure Reducing Valve with Integral By-pass Check Valve |
| Reduced pressure range | 25 to 75 psi |
| Property | Value |
|---|
| Property | Value |
|---|---|
| Use Annotation Scale |
Product Resource download links.
