Product Details

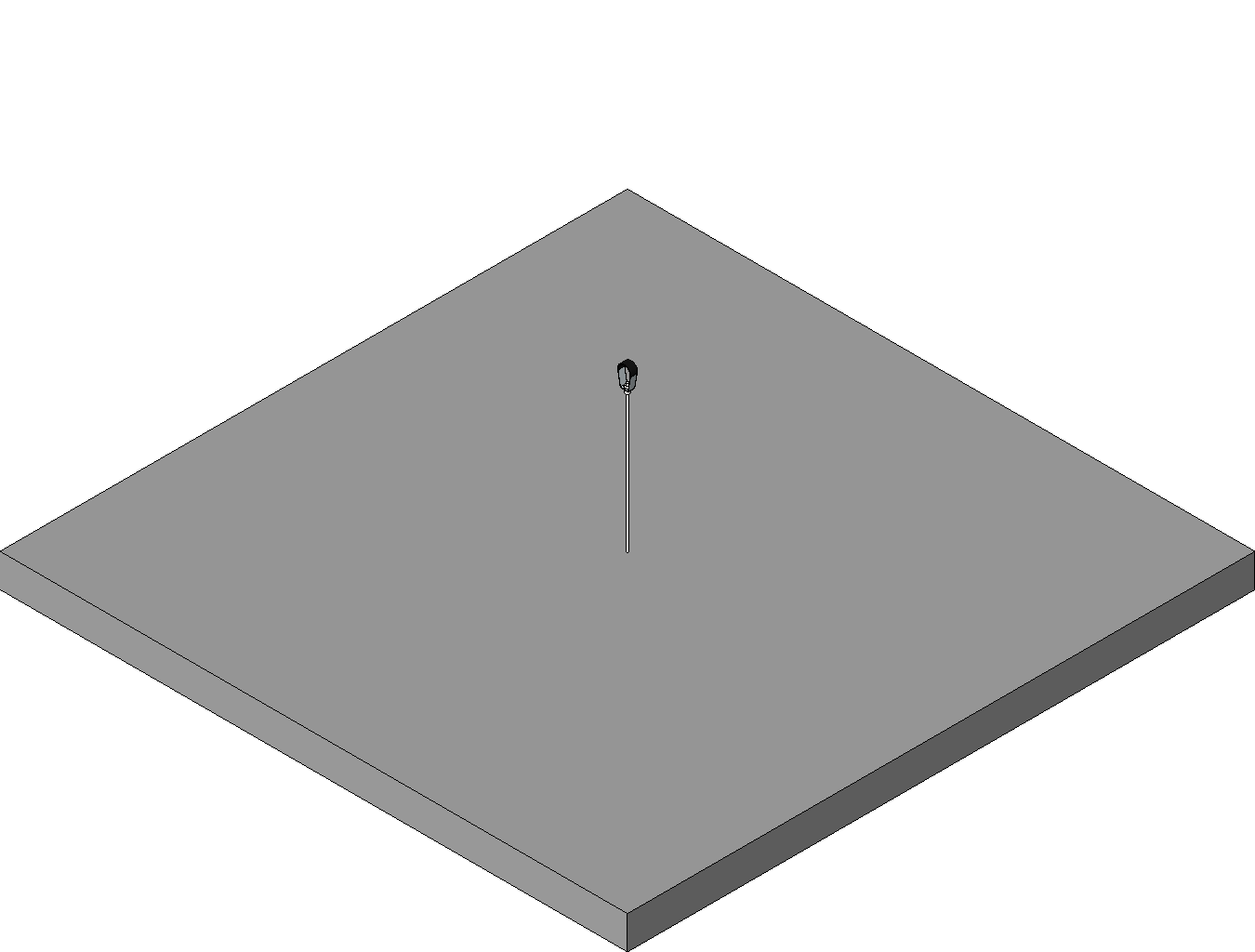

Pipe_Hanger-Schott-Kimax-Padded-7290
Category
Pipe Accessories
Description
| Property | Value |
|---|---|
| Nominal Radius | 2 in |
| Property | Value |
|---|---|
| HangerOR | 2.4102 in |
| Hanger Top Width | 0.125 ft |
| Insert Radius | 0.026 ft |
| Default Elevation | 4 ft |
| PipeOR | 2.2656 in |
| Padding Thickness | 0.1758 in |
| Distance from Ceiling to Pipe Center | 2 ft |
| Hanger Plus Padding OR | 2.4414 in |
| Sphere Of Influence Radius | 0.5 ft |
| Padding Depth | 0.0885 ft |
| PipeOD | 4.5313 in |
| Hanger Depth | 0.0833 ft |
| Padding Angle | 20 deg |
| Thread Radius | 0.0156 ft |
| Property | Value |
|---|---|
| F | 0.1133 in |
| Nominal Diameter | 4 in |
| Nominal Length | 2.2035 ft |
| C | 0.3958 ft |
| A | 0.0729 ft |
| Property | Value |
|---|---|
| Hardware Material | Steel - Schott - Stainless |
| Strap Material | Zinc - Schott |
| Padding Material | Rubber - Schott |
| Property | Value |
|---|
| Property | Value |
|---|---|
| Use Annotation Scale |
Product Resource download links.
