Product Details

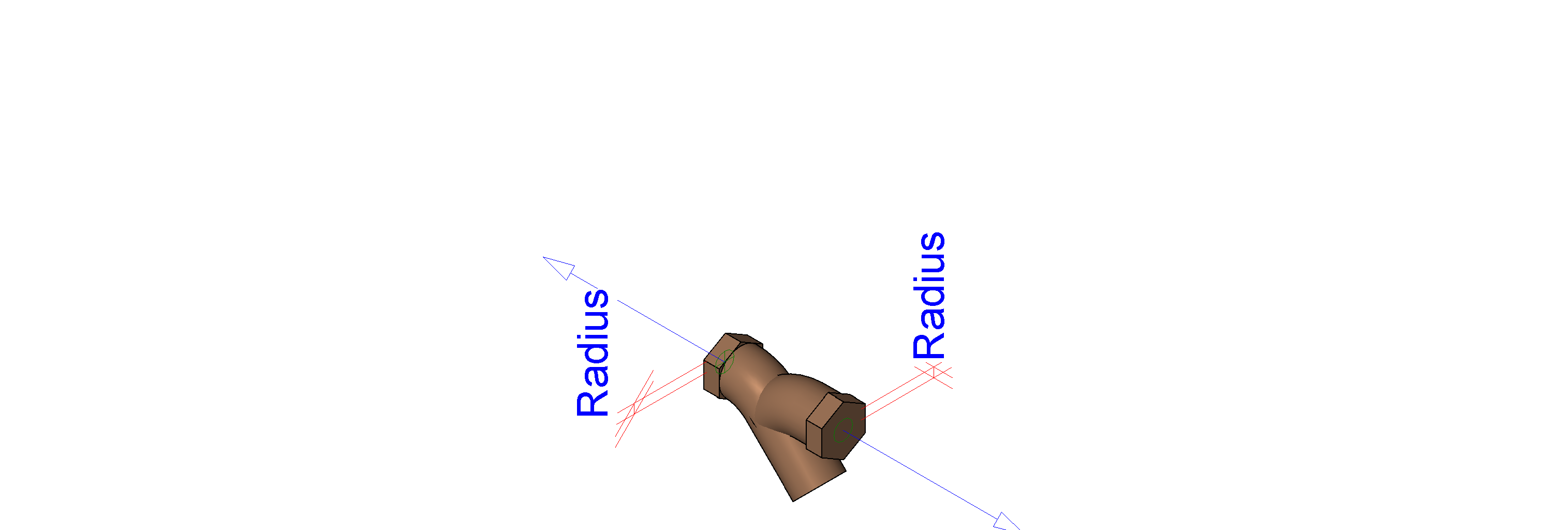

Strainer-Wye_Type-Zurn_Wilkins-Model_YB_Threaded-(0.5-1.25_Inch)
Category
Pipe Accessories
Description
| Property | Value |
|---|---|
| Product data url | |
| Specification Sheet URL | |
| Manufacturer | Zurn Wilkins |
| URL | |
| Insert Length | 0.2751 ft |
| Weight | 2 |
| Product Page URL | |
| Repair Parts URL | |
| Symbol | 1 1/4" |
| Assembly Code | D2090900 |
| Body Flare | 0.1036 ft |
| Application | Designed for installation on potable water lines to protect against sediment and debris. |
| Description | Strainer |
| Angle 2 | 0.0918 ft |
| Model | YB |
| Flange Thickness | 0.0465 ft |
| Standards Compliance | Conformance to MIL-S-16293 |
| Type Comments | End Connections Threaded ANSI B 1.20.1 |
| Property | Value |
|---|---|
| Use Annotation Scale |
| Property | Value |
|---|---|
| Body Radius | 0.0828 ft |
| Nominal Radius | 0.0521 ft |
| Body Diameter | 0.1657 ft |
| Property | Value |
|---|---|
| Nominal Diameter | 0.1042 ft |
| Height | 0.3857 ft |
| Arc Radius | 0.125 ft |
| Length | 0.391 ft |
| Flange Width | 0.165690104166667 |
| Property | Value |
|---|---|
| Max Working Water Pressure | 400.0005 lb/(in^2) |
| Max Working Water Temperature | 180 degF |
