Product Details

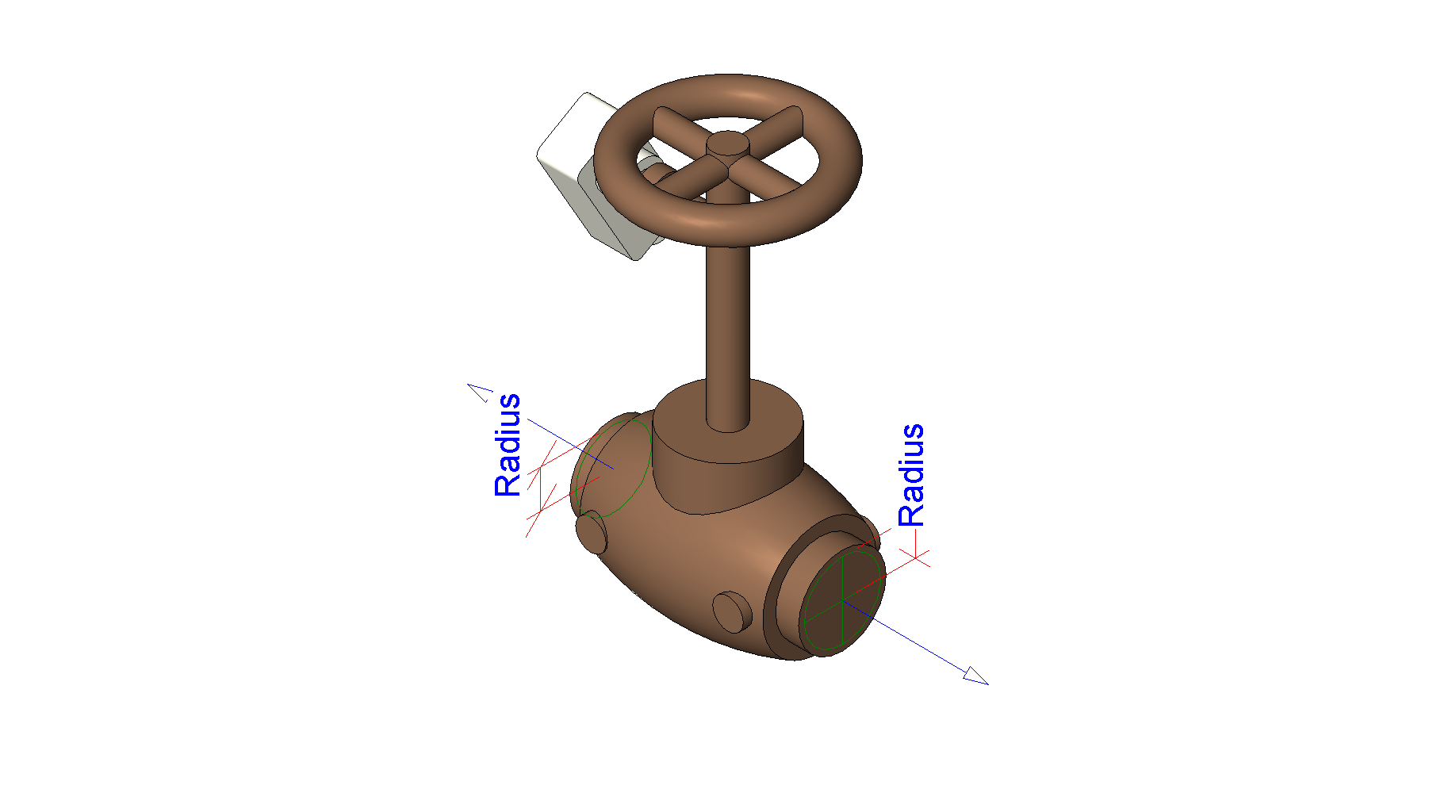

Fire_Valve-Zurn_Wilkins_Model_ZW4004ILGSS-(2.5_Inch)
Category
Pipe Accessories
Description
| Property | Value |
|---|---|
| Use Annotation Scale |
| Property | Value |
|---|---|
| Max Working Water Pressure | 400 lb/(in^2) |
| Property | Value |
|---|---|
| Product Page URL | |
| Application | The Pressure-Tru™ ZW4000 Series Pressure Reducing Valve is listed as a standpipe valve for individual hose stations in CLASS I and CLASS III systems. Regulates pressure under both FLOW and NO-FLOW conditions. |
| Half Length | 0.3125 ft |
| Centerline To Bottom | 0.1979 ft |
| Handle Radius | 0.2813 ft |
| Handle Thickness | 0.0625 ft |
| Product Install & Maintenance Sheet URL | |
| Manufacturer | Zurn Wilkins |
| Model | ZW4004ILGSS |
| Globe Radius | 0.75 ft |
| Keynote | 15410 |
| Assembly Code | D4020300 |
| Description | Pressure-Tru™ Fire Hose Valve |
| Type Comments | End connections: Grooved AWWA C606 |
| Groove Radius | 0.1198 ft |
| Hex Width | 0.2832 ft |
| Product data url | |
| Stem Radius | 0.0417 ft |
| URL | |
| Standards Compliance | UL® Listed, C-UL® Listed, NYC MEA 325-06-E |
| Weight | 23 |
| Specification Sheet URL |
| Property | Value |
|---|---|
| Length | 0.625 ft |
| Nominal Diameter | 0.2083 ft |
| Height | 1.125 ft |
| Property | Value |
|---|---|
| Thread Radius | 0.1042 ft |
