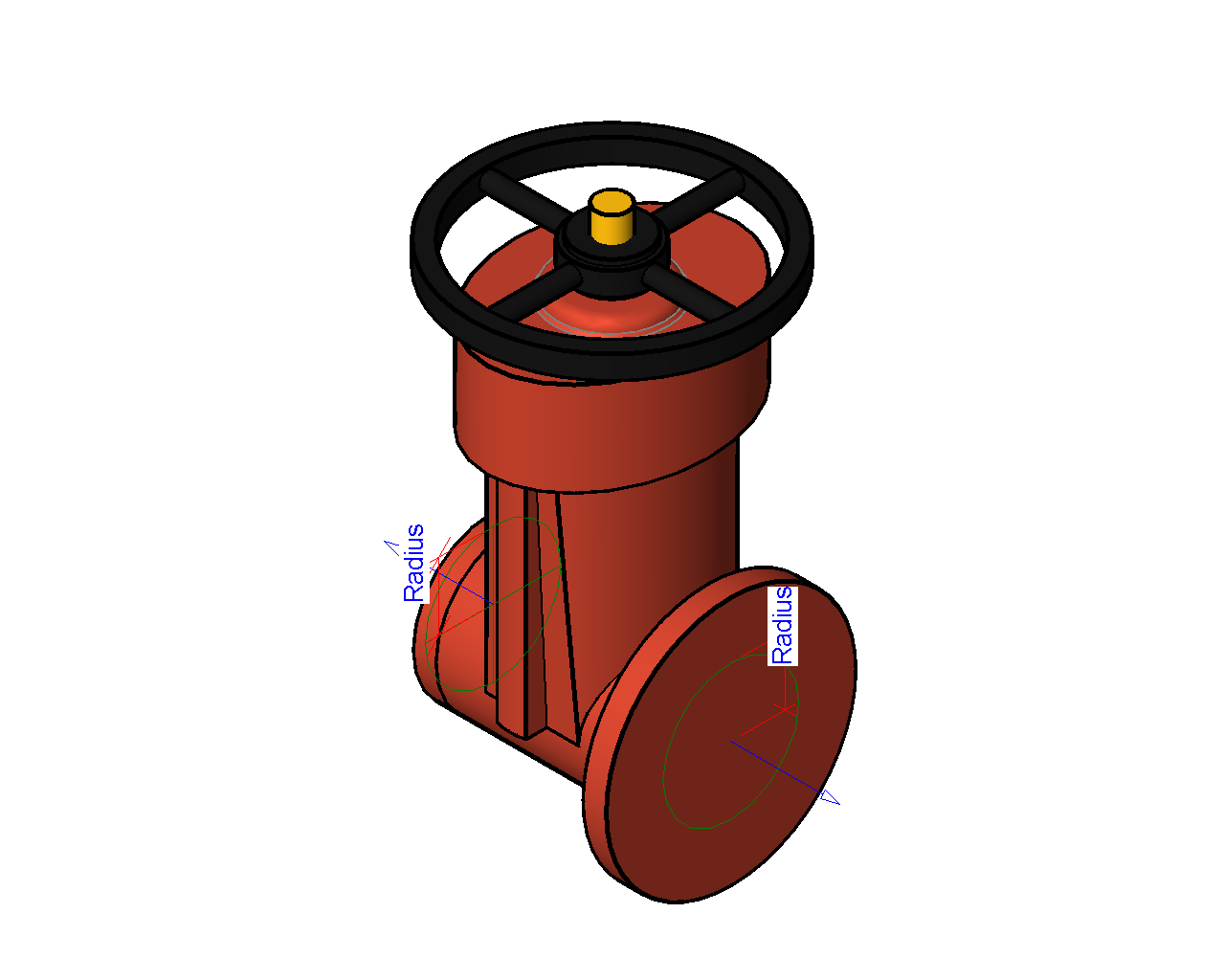

60f6f066-c713-4c8e-b1ee-07ca812f1eb0 - 3D View - Preview.png

Gate_Valve-Zurn_Wilkins-Model_48GXF_GRVxFLG-(2.5-12_Inch)

2 1/2"

Introducing our exquisite collection of featured doors, meticulously crafted to redefine elegance and sophistication. Each door in this extraordinary lineup is a testament to our unwavering commitment to exceptional craftsmanship and unparalleled quality.

Featured

Contact Sales Rep

Richly detailed architectural design in a classic style.

Memoirs®

A fresh twist on simple, Shaker-style furniture design.

Tresham®

An alluring blend of craftsman furniture and fine jewelry.

Archer®

Consider a Nested single, distinctive style for total harmony

Explore Nested Collections

Consider a single, distinctive style for total harmony

Explore Collections

memoirs

tresham

Explore Nested Series

SHADOW TONES, SKY TONES, BUILDING STONE, SQUARES & RECTANGLES

Modern commercial building architectural stone veneer healthcare clinic – Buff Gray Tailored Blend

ARCTIC TONES, BUILDING STONE, SQUARES & RECTANGLES

Commercial modern architectural stone veneer healthcare clinic – Fond du Lac Country Squire & Jumpers Custom Blend

HONEY TONES, SHADOW TONES, BUILDING STONE, SQUARES & RECTANGLES

Craftsman tan blue stone veneers exterior wood beam patio interior design entrance – Spalted Oak Ashlar

ARCTIC TONES, LANDSCAPE STONE, IRREGULAR, SQUARES & RECTANGLES

Backyard landscaping outdoor patio furniture fire pit – Fond du Lac stone pavers steppers flagstone steps

ARCTIC TONES, BUILDING STONE, CUT STONE, CUSTOM CUT STONE, SQUARES & RECTANGLES

Fond du Lac Tailored Blend and Indiana Silverbuff Cut Stone

Brag Book

Designing with GDF Studio couldn’t be easier. Grab the files you need and load them into your project.

The single source of truth for interior products

GDF AEC Portal Studio

Find BIM, CAD and other technical product information for products found in our catalog.

Add products to your project and receive a detailed Project Submittal.

Add products to your project and get a comprehensive report for all available LEED credits.

Property	Value
Open Height	1.0625 ft
Product Page URL	View
Housing Bottom Radius	0.151 ft
Closed Height	1.0625 ft
OSY
Manufacturer	Zurn Wilkins
Product data url	View
Housing Top Radius	0.1406 ft
Hand Wheel Radius	0.4271 ft
Horizontal Flange Thickness	0.2604 ft
Assembly Code	D2090800
Hand Wheel Height	0.5313 ft
Type Comments	Flanged Connections ANSI B16.1 Class 125
Body Length	0.6667 ft
Symbol Width	0.1925 ft
Flange Thickness	0.0625 ft
Horizontal Flange Height	0.7708 ft
Cover Diameter	0.2708 ft
Weight	35 lbs (16 kg)
Standards Compliance	UL, C-UL, FM, AWWA, NSF 61-G
Model	48GxF
URL	View
Application	Designed for installation on Potable water lines, Irrigation systems, Waterworks connections, and Fire systems.
Spoke Width	0.3646 ft
Specification Sheet URL	View
Hand Wheel Diameter	0.8542 ft
Description	Lead-Free* Resilient Wedge Gate Valve, Non-Rising Stem (NRS)
Symbol Extension Length	0.0833 ft
Flange Radius	0.3125 ft

Property	Value
Rated Flow	320 (gal)/min
Max Working Water Temperature	140 degF
Flow	0
Max Working Water Pressure	200 lb/(in^2)
Pressure Loss at Rated Flow	0.25 lb/(in^2)
Hydrostatic Test Pressure	400 lb/(in^2)

Property	Value
Nominal Radius	0.125 ft
Body Radius	0.1667 ft
Body Diameter	0.3333 ft

Property	Value
Nominal Diameter	0.25 ft
Length	0.6667 ft
Flange Diameter	0.625 ft
