Product Details

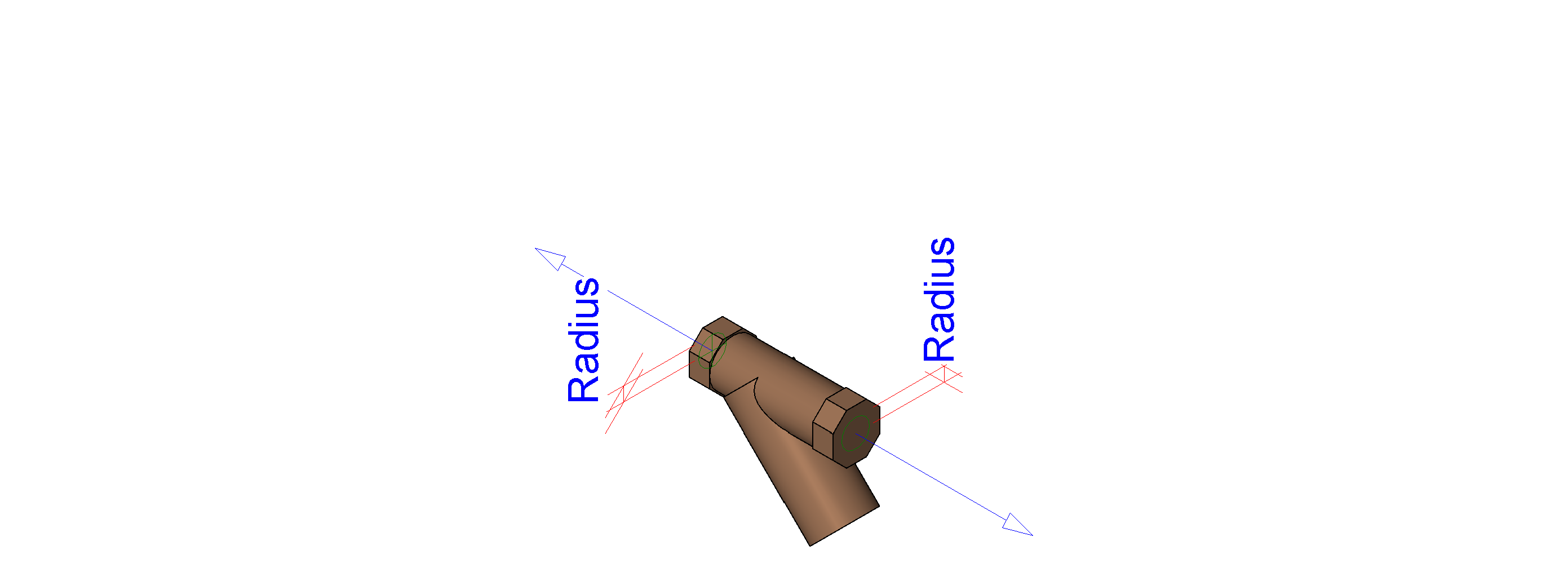

Strainer-Wye_Type-Zurn_Wilkins-Model SXL_Threaded-(0.5-1.25_Inch)
Category
Pipe Accessories
Description
| Property | Value |
|---|---|
| Assembly Code | D2090800 |
| Weight | 2.8 |
| Application | Lead-Free* Recommended for a variety of water service lines including residential and commercial irrigation, swimming pools and cooling tower water. They are also designed to protect delicate equipment such as regulators and backflow preventers by filtering sediment which could cause premature failure. |
| Standards Compliance | NSF® Listed - Standard 61, Annex G, Lead Plumbing Law Certified by IAPMO R&T |
| Repair Parts URL | |
| Manufacturer | Zurn Wilkins |
| URL | |
| Weight1 | 2.75 lb |
| Symbol | 1 1/4" |
| Specification Sheet URL | |
| Intersection | 0.1475 ft |
| Product Page URL | |
| Flange Thickness | 0.054 ft |
| Description | Strainer |
| Product data url | |
| Model | SXL |
| Flange Top | 0.0656 ft |
| Flange Height | 0.1641 ft |
| Type Comments | Threaded connections (FNPT) ANSI B1.20.1 |
| Property | Value |
|---|---|
| Length | 0.4424 ft |
| Depth | 0.3171 ft |
| Nominal Diameter | 0.1042 ft |
| Radius | 0.0898 ft |
| Height | 0.3958 ft |
| Property | Value |
|---|---|
| Use Annotation Scale |
| Property | Value |
|---|---|
| Body Radius | 0.0788 ft |
| Nominal Radius | 0.0521 ft |
| Body Diameter | 0.1576 ft |
| Property | Value |
|---|---|
| Hydrostatic Test Pressure | 0 lb/(in^2) |
| Max Working Water Temperature | 180 degF |
| Max Working Water Pressure | 300.0001 lb/(in^2) |
Product Resource download links.
