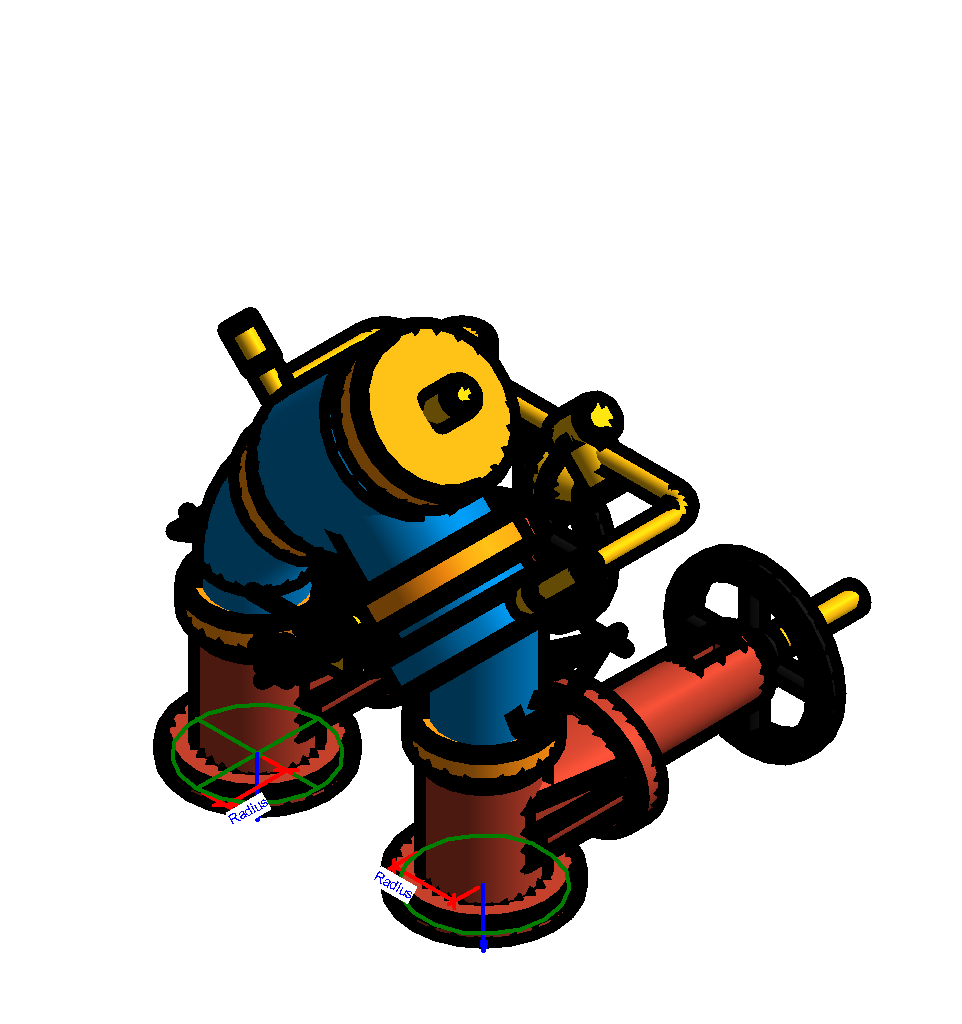

0e853036-430c-4f5b-84f5-a2d8c8fbcd2a - 3D View - {3D}

Backflow_Preventer-RPDA-Zurn_Wilkins-Model_475DA_Flanged-(4-6_Inch)

Introducing our exquisite collection of featured doors, meticulously crafted to redefine elegance and sophistication. Each door in this extraordinary lineup is a testament to our unwavering commitment to exceptional craftsmanship and unparalleled quality.

Featured

Contact Sales Rep

Richly detailed architectural design in a classic style.

Memoirs®

A fresh twist on simple, Shaker-style furniture design.

Tresham®

An alluring blend of craftsman furniture and fine jewelry.

Archer®

Consider a Nested single, distinctive style for total harmony

Explore Nested Collections

Consider a single, distinctive style for total harmony

Explore Collections

memoirs

tresham

Explore Nested Series

SHADOW TONES, SKY TONES, BUILDING STONE, SQUARES & RECTANGLES

Modern commercial building architectural stone veneer healthcare clinic – Buff Gray Tailored Blend

ARCTIC TONES, BUILDING STONE, SQUARES & RECTANGLES

Commercial modern architectural stone veneer healthcare clinic – Fond du Lac Country Squire & Jumpers Custom Blend

HONEY TONES, SHADOW TONES, BUILDING STONE, SQUARES & RECTANGLES

Craftsman tan blue stone veneers exterior wood beam patio interior design entrance – Spalted Oak Ashlar

ARCTIC TONES, LANDSCAPE STONE, IRREGULAR, SQUARES & RECTANGLES

Backyard landscaping outdoor patio furniture fire pit – Fond du Lac stone pavers steppers flagstone steps

ARCTIC TONES, BUILDING STONE, CUT STONE, CUSTOM CUT STONE, SQUARES & RECTANGLES

Fond du Lac Tailored Blend and Indiana Silverbuff Cut Stone

Brag Book

Designing with GDF Studio couldn’t be easier. Grab the files you need and load them into your project.

The single source of truth for interior products

GDF AEC Portal Studio

Find BIM, CAD and other technical product information for products found in our catalog.

Add products to your project and receive a detailed Project Submittal.

Add products to your project and get a comprehensive report for all available LEED credits.

Property	Value
Overall Height	30 in
Nominal Diameter	8 in
Overall Length	18.3125 in
Nominal Radius	4 in
Length	18.3125 in
Height	30 in
Pipe Size	1 in

Property	Value
Type Comments	Flanged Connections ANSI B16.1
Product Page URL	View
Standards Compliance	ASSE, FCCCHR@USC, UL, C-UL, FM, NYC
Application	Potable water lines in fire systems. Designed for installation on potable water lines in fire protection systems to protect against both backsiphonage and backpressure of contaminated water into the potable water supply.
Product data url	View
Manufacturer	Zurn Wilkins
Assembly Code	D2090800
Description	RPDA Reduced Pressure Principle Detector Assembly
Weight	303 lbs. (137.4 kg)
Repair Parts URL	View
Specification Sheet URL	View
Product Install & Maintenance Sheet URL	View
Model	475 DA
URL	View

Property	Value
Max Working Water Pressure	175 psi
Pressure Loss at Rated Flow	10.3 psi
Hydrostatic Test Pressure	350 psi
Max Working Water Temperature	140 degF
Flow	0
Rated Flow	500 (gal)/min

Property	Value
Symbol Length	24 in
Bend Radius	1.25 in
Pipe Vertical Position	7.2227 in
Gate Valve	4"
Bend Radius Outside	2.3984 in
Pipe Position	6.3867 in
Main Body	4"
