Product Details

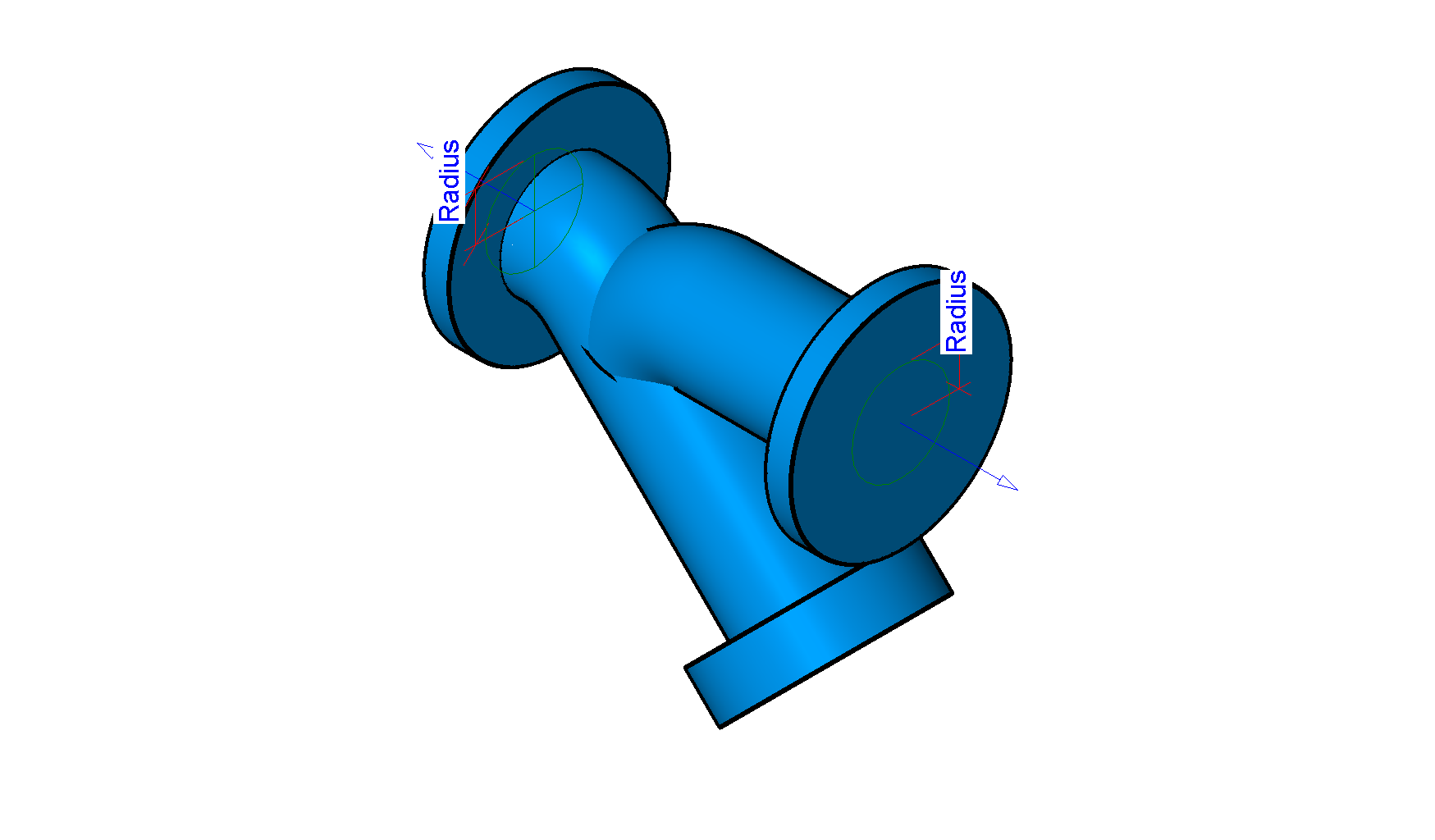

Strainer-Wye_Type-Zurn_Wilkins-Model_FS_Flanged-(2.5-10_Inch)
Category
Pipe Accessories
Description
| Property | Value |
|---|---|
| Max Working Water Pressure | 200 lb/(in^2) |
| Max Working Water Temperature | 180 degF |
| Property | Value |
|---|---|
| Use Annotation Scale |
| Property | Value |
|---|---|
| Specification Sheet URL | |
| Flange Thickness | 0.071 ft |
| Plug Flange Diameter | 0.4798 ft |
| Test | 0.1966 ft |
| Application | Lead-Free*Designed for installation on potable water lines to protect downstream equipment from malfunction or premature failure due to build-up of sediment or debris. |
| Product data url | |
| Weight | 45 |
| Description | Strainer |
| Flange Radius | 0.3125 ft |
| Symbol | 3" |
| Standards Compliance | MIL-S 16293F Type 2, Lead Plumbing Law Certified by IAPMO R&T |
| Manufacturer | Zurn Wilkins |
| Start | 0.0085 ft |
| 2X Flange Thickness | 0.1419 ft |
| Product Page URL | |
| Insert Length | 0.6266 ft |
| URL | |
| Assembly Code | D2090800 |
| Plug Flange Radius | 0.2399 ft |
| Type Comments | End connections: Flanged Class 125 lb |
| Model | FS |
| Insert Offset | 0.196 ft |
| Property | Value |
|---|---|
| Body Radius | 0.1549 ft |
| Body Diameter | 0.3099 ft |
| Nominal Radius | 0.125 ft |
| Property | Value |
|---|---|
| Length | 0.8958 ft |
| Height | 0.7708 ft |
| Nominal Diameter | 0.25 ft |
Product Resource download links.
