| Body Seat Bell Length | 0.0391 ft |
| Body Thread Radius | 0.0677 ft |
| Body Top Seat Bell Radius | 0.1042 ft |
| Body Tail Radius | 0.0352 ft |

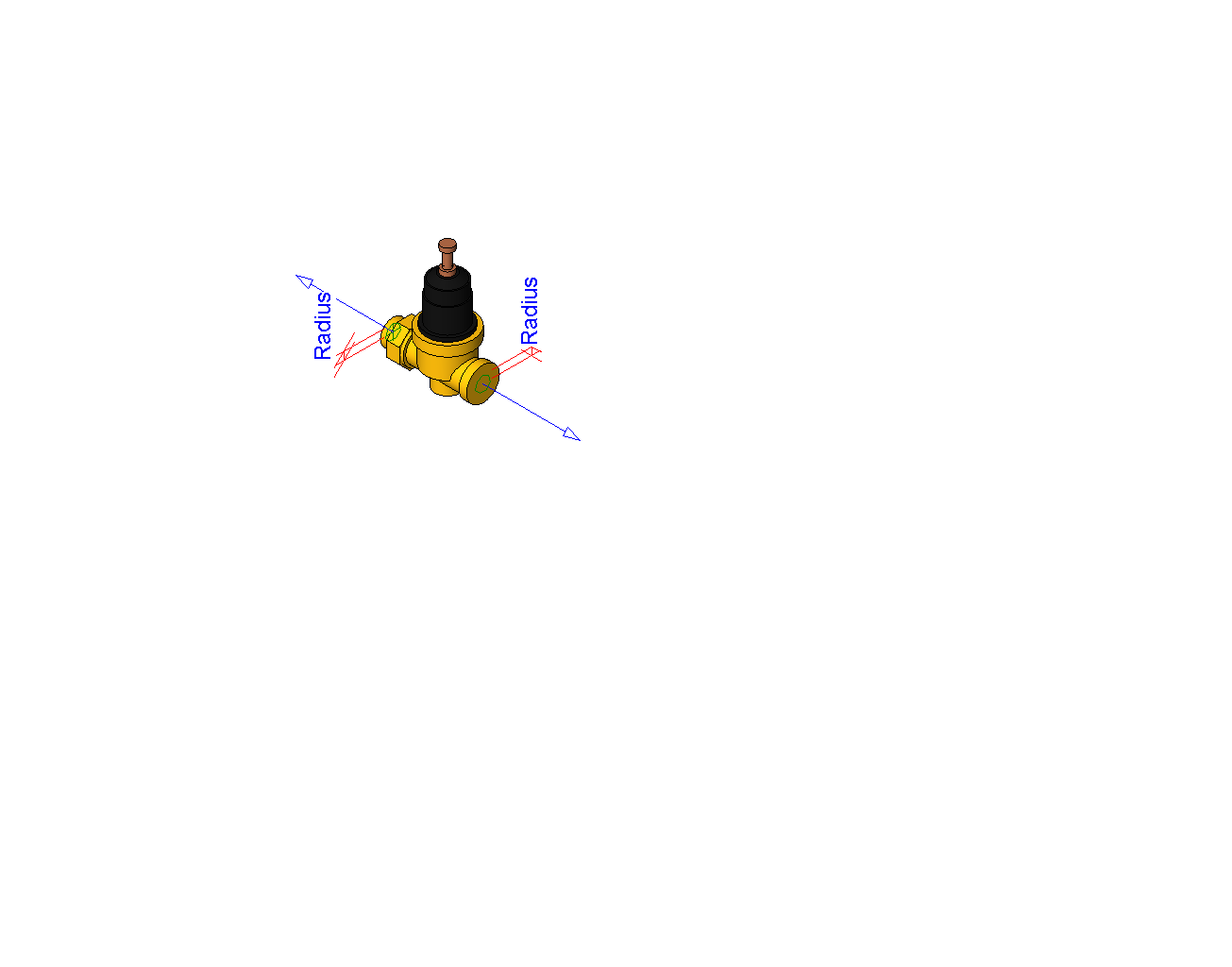

| Description | Water Pressure Reducing Valve with Integral By-pass check Valve and Strainer |
| Bell Hex Radius | 0.0677 ft |
| Application | Ideal for use where Lead-Free* valves are required. Designed for
installation on potable water lines to reduce high inlet pressure to a
lower outlet pressure. The integral strainer makes this device most
suitable for residential and commercial water systems that require
frequent cleaning of sediment and debris. The direct acting integral
by-pass design prevents buildup of excessive system pressure
caused by thermal expansion. The balance piston design enables
the regulator to react in a smooth and responsive manner to
changes in system flow demand, while at the same time, providing
protection from inlet pressure changes. |
| Bell Upper Base Radius | 0.0729 ft |
| Product url | View |
| Standards Compliance | ASSE, IAPMO, CSA |
| Youtube clip | View |
| Installation instructions | View |
| Body Top Radius | 0.0885 ft |
| Model | NR3XL |
| Assembly Code | D2090800 |
| Body Base Tail Radius | 0.0508 ft |
| Product Install & Maintenance Sheet URL | View |
| Bell Base Radius | 0.0859 ft |
| Weight | 3.0 lbs |
| Manufacturer | Zurn Wilkins |
| Body Center to Tail Length | 0.0938 ft |
| Bell Blend Radius | 0.0625 ft |
| Nut Length | 0.1706 ft |
| Type Comments | Threaded Connections ANSI B1.20.1 |
| Specification Sheet URL | View |
| URL | View |
| Body Width | 0.0352 ft |
| Polygon diameter | 0.1458 ft |
| Product Page URL | View |
| Product Guid | f1ba2363-27a5-4943-b485-ec97e58a315c |
| Factory Preset Pressure | 50 lb/(in^2) |
| Bell Upper Base Length | 0.099 ft |
| Technical description | View |
| Bell Base Length | 0.0156 ft |
| Nut Size | 1/2 inch |
| Fall Off | See Specifications sheet for Fall Off Curve |
| Repair Parts URL | View |
| Body Top Length | 0.0954 ft |
| Tailpiece radius | 0.0417 ft |
| Product data url | View |
