| Max working water temperature | 180°F |
| DimD | 3.375 in |
| Standards Compliance | ASSE, IAPMO, CSA, City of LA |
| Type Comments | Single Union FNPT Inlet x FNPT Outlet, ANSI B1.20.1 |
| BodyR | 0.07 ft |
| DimC Strainer | 0.1667 ft |
| Manufacturer | Zurn Wilkins |
| Specification Sheet | View |
| Model | 600 |
| CapR | 0.0635 ft |
| Weight | 5 lbs. / 2.5 kg |
| BoltR | 0.0156 ft |
| Instruction Sheet | View |
| Stainer CL | 0.1667 ft |
| DimB | 0.6042 ft |
| Tail | 0.1667 ft |

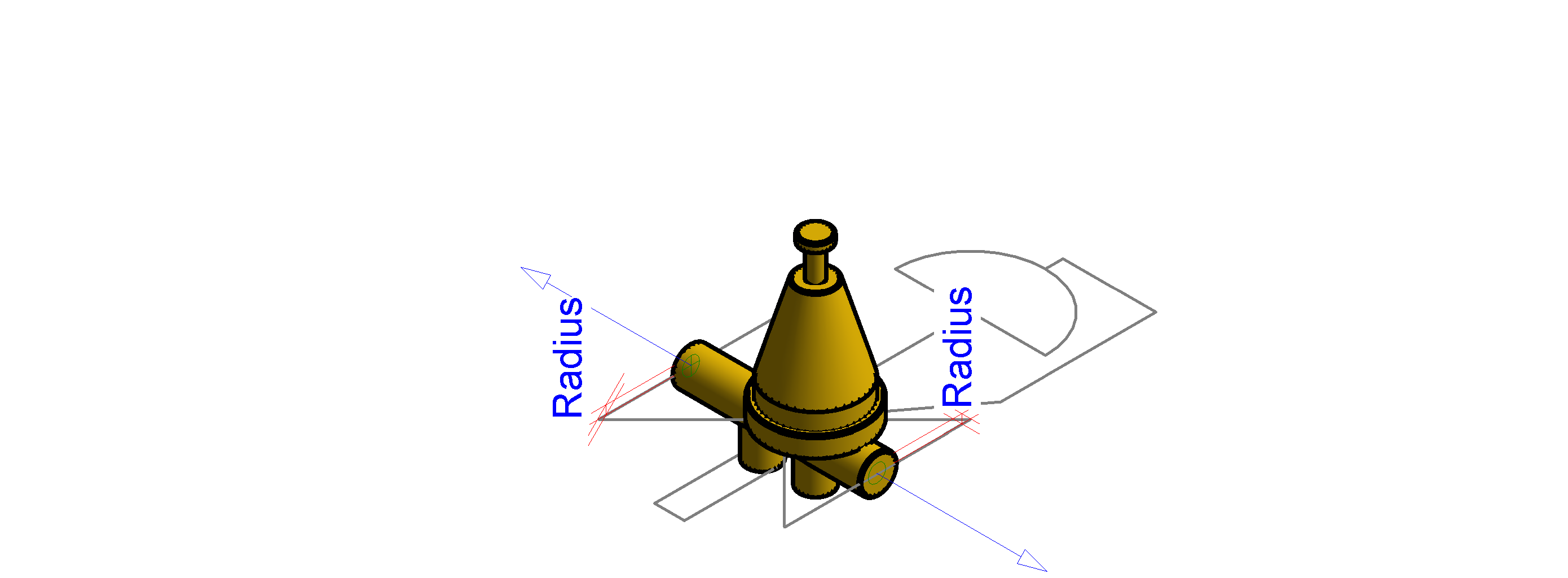

| Description | Water Pressure Reducing Valve with Integral Strainer
with Integral By-pass Check Valve |
| Product data url | View |
| Product Page URL | View |
| BellH | 0.0521 ft |
| URL | View |
| BellTR | 0.0521 ft |
| BoltL | 0.1146 ft |
| DimC | 0.1354 ft |
| BellR | 0.1406 ft |
| HexH | 0.0833 ft |
| Max working water pressure | 300 psi |
| Nominal Size | 1 in |
| HexR | 0.0833 ft |
| Reduced pressure range | 25 to 75 psi |
| Assembly Code | D2090800 |
| BoltHR | 0.0313 ft |
| DimA | 0.5104 ft |
| Repair Kit | View |
| DimA2 | 0.2552 ft |
