Product Details

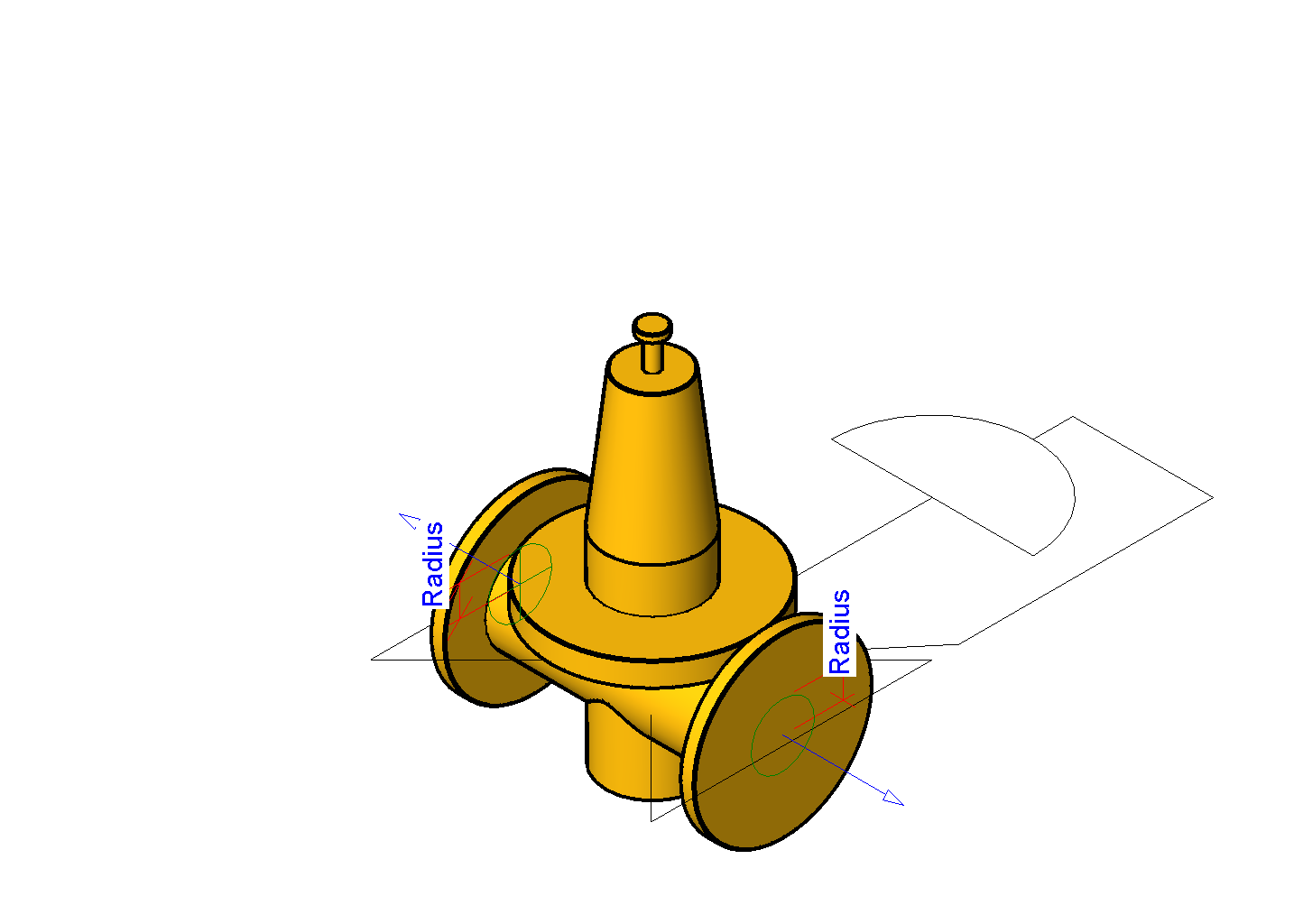

Pressure_Reducing_Valve-Zurn_Wilkins-Model_500XLFC_Flanged-(2-3_Inch)
Category
Pipe Accessories
Description
| Property | Value |
|---|---|
| Bolt Head Radius | 0.0417 ft |
| Type Comments | Flanged connections ANSI B16.1 Class B |
| Hex Radius | 0.1543 ft |
| Bolt Length | 0.125 ft |
| URL | |
| Bolt Radius | 0.0208 ft |
| Cap Radius | 0.1517 ft |
| Description | Lead-Free* Water Pressure Reducing Valve with Flanged Connections |
| Weight | 30 |
| Flange Thickness | 0.0417 ft |
| Specification Sheet URL | |
| DimA | 0.8646 ft |
| Bell Height | 0.0749 ft |
| Bell Top Radius | 0.1042 ft |
| Tail | 0.429 ft |
| Manufacturer | Zurn Wilkins |
| Hex Height | 0.1501 ft |
| Application | Designed for installation on potable water lines to reduce high inlet pressure to a lower outlet pressure. |
| Product Install & Maintenance Sheet URL | |
| Standards Compliance | Lead Plumbing Law Certified by IAPMO R&T |
| DimC Flange | 0.2917 ft |
| DimC | 0.2917 ft |
| Fall Off | See Specification Sheet for Fall Off Curve |
| DimB | 1.25 ft |
| Bell Radius | 0.3333 ft |
| Product Page URL | |
| DimD | 8 in |
| Model | 500XLFC |
| Flow Factor | 1 |
| DimA2 | 0.4323 ft |
| Assembly Code | D2090800 |
| Repair Parts URL | |
| Preset Pressure | Fieldset |
| Product data url |
| Property | Value |
|---|---|
| Max Working Water Temperature | 140 degF |
| Reduced Pressure Range | 25 psi to 75 psi |
| Flow | 0 |
| Max Working Water Pressure | 300 lb/(in^2) |
| Property | Value |
|---|---|
| Length | 0.8646 ft |
| Nominal Diameter | 2.5 in |
| Height | 1.25 ft |
| Property | Value |
|---|---|
| Nominal Radius | 0.1042 ft |
| Body Radius | 0.1582 ft |
| Property | Value |
|---|---|
| Use Annotation Scale |
| Property | Value |
|---|---|
| Materials | Paint - Zurn - Brass |
Product Resource download links.
