Product Details

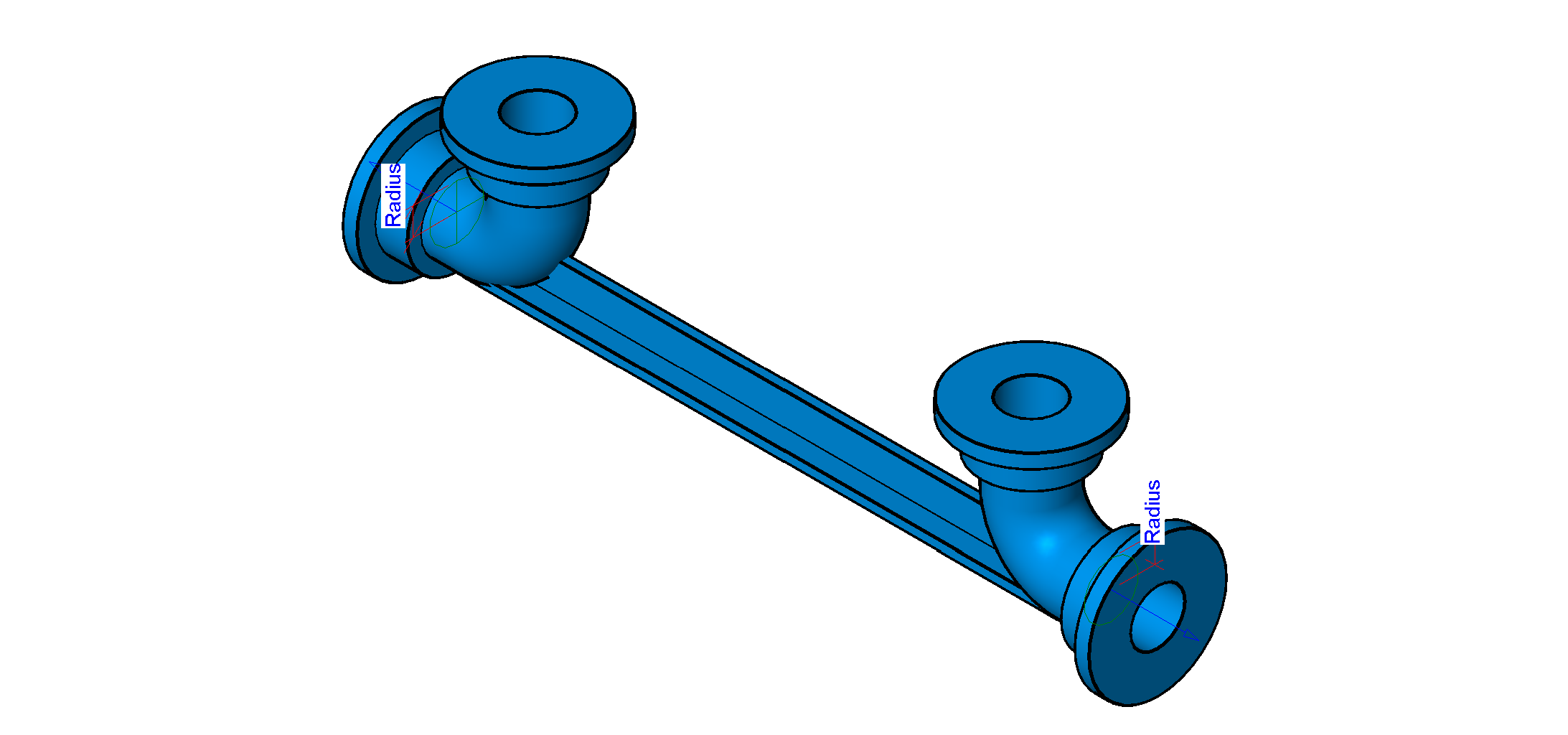

Setter-Zurn_Wilkins-Model_MJS_Mech_Joint_by_Mech_Joint-(3-10_Inch)
Category
Pipe Accessories
Description
| Property | Value |
|---|---|
| Flange Thickness | 0.0833 ft |
| Product Page URL | |
| Weight | 178 |
| Description | Lead-Free* Valve Setter |
| Elbow X Dim | 0.5859 ft |
| Dim B | 1.5573 ft |
| Specification Sheet URL | |
| Beam Offset | 0.375 ft |
| URL | |
| Dim A | 2.7292 ft |
| Application | Designed to ease the installation of the N-Shape Wilkins Model 450 and 475 series Backflow Preventions Assemblies. |
| Elbow Y Dim | 0.5885 ft |
| Model | MJS |
| Beam Width | 0.225 ft |
| Half Dim B | 0.7786 ft |
| Beam Height | 0.2083 ft |
| Beam Thickness | 0.0625 ft |
| Manufacturer | Zurn Wilkins |
| Product data url | |
| Type Comments | Mechanical Joint Connections AWWA C153-88 |
| Beam Offset Center | 0.1042 ft |
| Property | Value |
|---|---|
| Nominal Radius | 0.25 ft |
| Property | Value |
|---|---|
| Flange Diameter | 0.9167 ft |
| Nominal Diameter | 0.5 ft |
| Angle | 0 deg |
| Length | 2.7292 ft |
| Height | 0.5885 ft |
| Property | Value |
|---|---|
| Max Working Water Temperature | 140 degF |
| Max Working Water Pressure | 175 lb/(in^2) |
| Property | Value |
|---|---|
| Use Annotation Scale |
