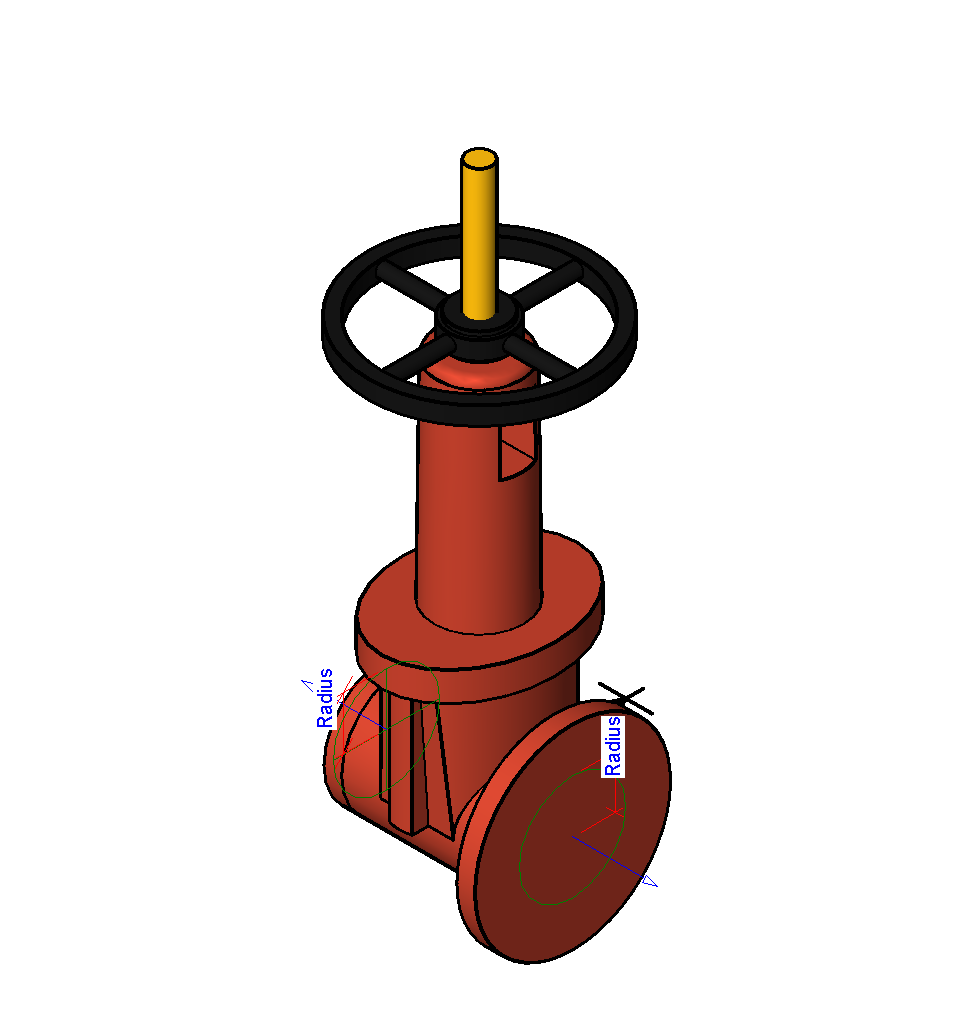

a1a08c99-a314-41d4-8d18-5351b4047fe0 - 3D View - Preview.png

Gate_Valve-Zurn_Wilkins-Model_48OSYGXF_GRVxFLG-(2.5-12_Inch)

2 1/2"

Introducing our exquisite collection of featured doors, meticulously crafted to redefine elegance and sophistication. Each door in this extraordinary lineup is a testament to our unwavering commitment to exceptional craftsmanship and unparalleled quality.

Featured

Contact Sales Rep

Richly detailed architectural design in a classic style.

Memoirs®

A fresh twist on simple, Shaker-style furniture design.

Tresham®

An alluring blend of craftsman furniture and fine jewelry.

Archer®

Consider a Nested single, distinctive style for total harmony

Explore Nested Collections

Consider a single, distinctive style for total harmony

Explore Collections

memoirs

tresham

Explore Nested Series

SHADOW TONES, SKY TONES, BUILDING STONE, SQUARES & RECTANGLES

Modern commercial building architectural stone veneer healthcare clinic – Buff Gray Tailored Blend

ARCTIC TONES, BUILDING STONE, SQUARES & RECTANGLES

Commercial modern architectural stone veneer healthcare clinic – Fond du Lac Country Squire & Jumpers Custom Blend

HONEY TONES, SHADOW TONES, BUILDING STONE, SQUARES & RECTANGLES

Craftsman tan blue stone veneers exterior wood beam patio interior design entrance – Spalted Oak Ashlar

ARCTIC TONES, LANDSCAPE STONE, IRREGULAR, SQUARES & RECTANGLES

Backyard landscaping outdoor patio furniture fire pit – Fond du Lac stone pavers steppers flagstone steps

ARCTIC TONES, BUILDING STONE, CUT STONE, CUSTOM CUT STONE, SQUARES & RECTANGLES

Fond du Lac Tailored Blend and Indiana Silverbuff Cut Stone

Brag Book

Designing with GDF Studio couldn’t be easier. Grab the files you need and load them into your project.

The single source of truth for interior products

GDF AEC Portal Studio

Find BIM, CAD and other technical product information for products found in our catalog.

Add products to your project and receive a detailed Project Submittal.

Add products to your project and get a comprehensive report for all available LEED credits.

Property	Value
URL	View
Flange Radius	0.375 ft
Standards Compliance	UL, C-UL, FM, AWWA, NSF 61-G
Open Height	1.875 ft
Horizontal Flange Height	0.6484 ft
Weight	81 lbs (37 kg)
Horizontal Flange Thickness	0.1276 ft
Manufacturer	Zurn Wilkins
Assembly Code	D2090800
Specification Sheet URL	View
Symbol Width	0.2165 ft
Cover Diameter	0.3333 ft
Spoke Width	0.3646 ft
Model	48OSYGxF
OSY
Housing Bottom Radius	0.151 ft
Application	Designed for installation on Potable water lines, Irrigation systems, Waterworks connections, and Fire systems.
Hand Wheel Height	0.9375 ft
Flange Thickness	0.0781 ft
Symbol Extension Length	0.0833 ft
Housing Top Radius	0.1406 ft
Body Length	0.75 ft
Closed Height	1.5208 ft
Hand Wheel Diameter	0.8542 ft
Description	Lead-Free* Resilient Wedge Gate Valve, Outside Stem and Yoke (OS&Y)
Product Page URL	View
Type Comments	Flanged Connections ANSI B16.1 Class 125
Hand Wheel Radius	0.4271 ft
Product data url	View

Property	Value
Nominal Diameter	0.3333 ft
Length	0.75 ft
Flange Diameter	0.75 ft

Property	Value
Flow	0
Rated Flow	500 (gal)/min
Max Working Water Temperature	140 degF
Max Working Water Pressure	200 lb/(in^2)
Pressure Loss at Rated Flow	0.17 lb/(in^2)
Hydrostatic Test Pressure	400 lb/(in^2)

Property	Value
Nominal Radius	0.1667 ft
Body Diameter	0.4167 ft
Body Radius	0.2083 ft
