Product Details

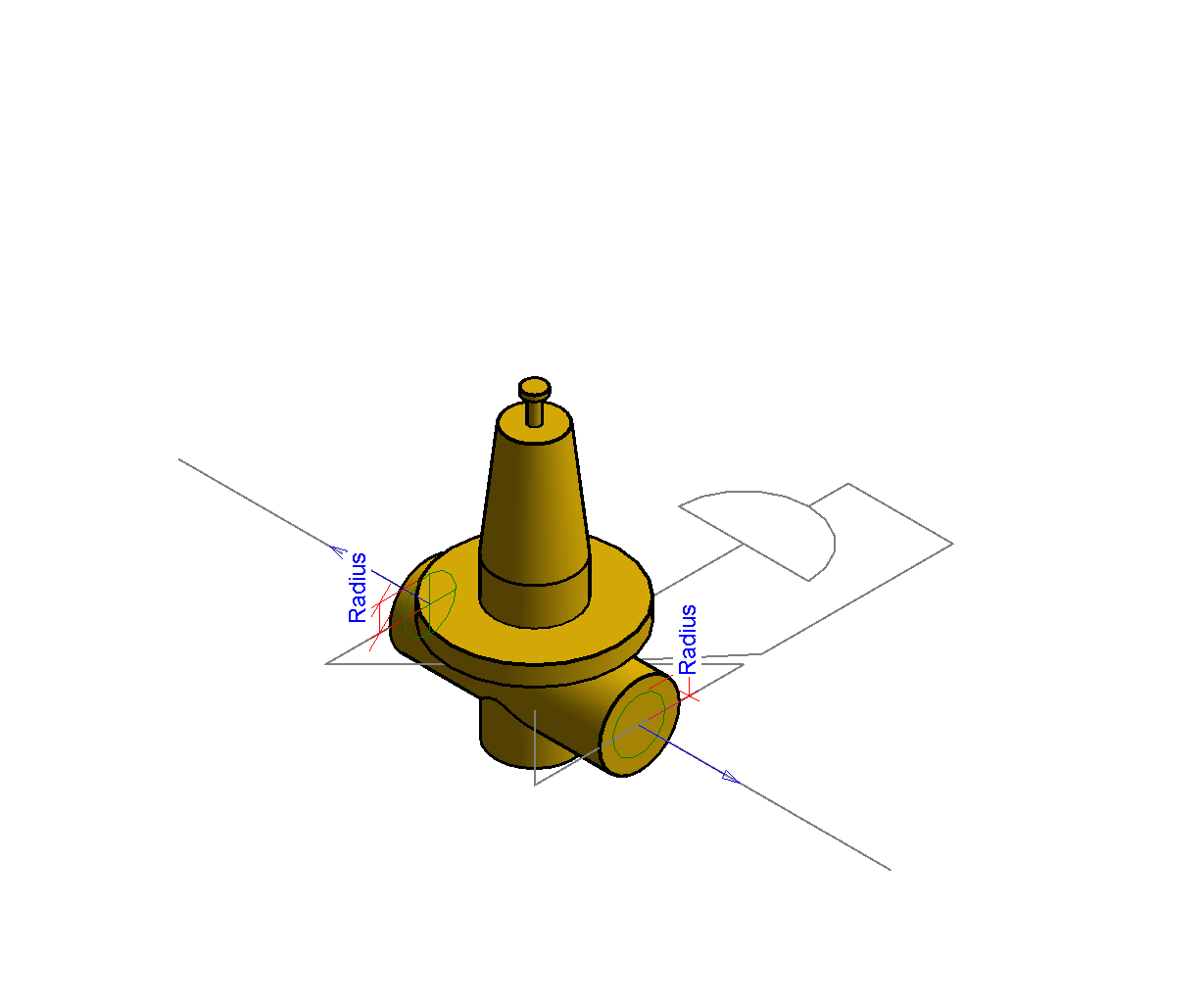

Pressure_Reducing_Valve-Direct_Acting-Zurn_Wilkins-Model_500_Threaded-(0.5-3_Inch)
Category
Pipe Accessories
Description
| Property | Value |
|---|---|
| BoltHR | 0.0417 ft |
| Tail | 0.2751 ft |
| Instruction Sheet | |
| BoltR | 0.0208 ft |
| Assembly Code | D2090800 |
| BodyR | 0.1042 ft |
| HexR | 0.1165 ft |
| NomRad | 0.0625 ft |
| BellH | 0.0625 ft |
| Standards Compliance | ASSE, IAPMO, CSA, City of LA |
| HexH | 0.0625 ft |
| CapR | 0.0977 ft |
| Model | 500 |
| BellTR | 0.0775 ft |
| Manufacturer | Zurn Wilkins |
| Nominal Size | 1.5 in |
| Max working water temperature | 180° F |
| BellR | 0.2083 ft |
| Description | Water Pressure Reducing Valve with Integral By-pass Check Valve |
| DimB | 0.8333 ft |
| DimA2 | 0.3464 ft |
| Specification Sheet | |
| BoltL | 0.125 ft |
| Keynote | Single union FNPT inlet x FNPT outlet |
| Max working water pressure | 300 psi |
| Reduced pressure range | 25 to 75 psi |
| DimA | 0.6927 ft |
| DimC | 0.1563 ft |
| Repair Kit | |
| DimD | 5 in |
| URL | |
| Weight | 14 lbs. / 6.5 kg |
| Product data url | |
| Product Page URL |
| Property | Value |
|---|
| Property | Value |
|---|---|
| Use Annotation Scale |
Product Resource download links.
