| Ball Valve Specification Sheet URL | View |
| Order Form URL | View |
| Ball Valve Product Page URL | View |
| Max Working Water Temperature | 140 degF |
| Flange Radius | 0.25 ft |
| Pipe Length to Cap | 0.7917 ft |
| Manufacturer | Zurn Wilkins |
| Weight | 35 lbf |
| Elbow Height | 0.1188 ft |
| ACV Specification Sheet URL | View |
| Nominal Radius | 0.0833333333333333 |
| Cap Base Radius | 0.1302 ft |
| DIM Z Overall Width/Gauge Face | 0.8229 ft |
| Pipe length from Body | 0.4583 ft |
| Standards Compliance | ANSI/AWWA C530, Lead Plumbing Law Certified by IAPMO R&T |
| Min. Continuous Flow | 15 (gal)/min |
| Body Diameter | 0.2917 ft |
| Max. Continuous Flow | 210 (gal)/min |
| DIM D Body Radius | 0.1458 ft |
| Assembly Code | D2090900 |
| One quarter pilot tube radius | 0.3229 ft |
| Flange Width | 0.0520833333333333 |
| Top Lip Thickness | 0.0417 ft |
| Model | ZW205 |
| Brass Tee | 0.1702 ft |
| Center of Body Radius | 0.1979 ft |
| Vertical Length to Top Cover | 0.25 ft |
| Max Working Water Pressure | 250 lb/(in^2) |
| Vertical to PV-RLF | 0.2132 ft |
| Application | The Zurn Wilkins Model ZW205 Pilot Operated Pressure Relief
/ Pressure Sustaining Valve is designed for applications
where it is critical to maintain a pre-determined upstream
pressure. The pilot assembly reacts to changes in upstream
pressure allowing the main valve to modulate between the
closed and open position, maintaining desired upstream set
pressure. As long as the upstream pressure is below the set
point of the pilot assembly, the main valve will stay in the
closed position (sustaining); however, once the upstream
pressure exceeds the set point of the pilot assembly, the
main valve will open and relieve the excess pressure (relief). |
| Flange Diameter | 0.5 ft |
| Elbow Radius | 0.0156 ft |
| Pilot Regulator Specification Sheet URL | View |
| Tube Bend Radius | 0.0625 ft |

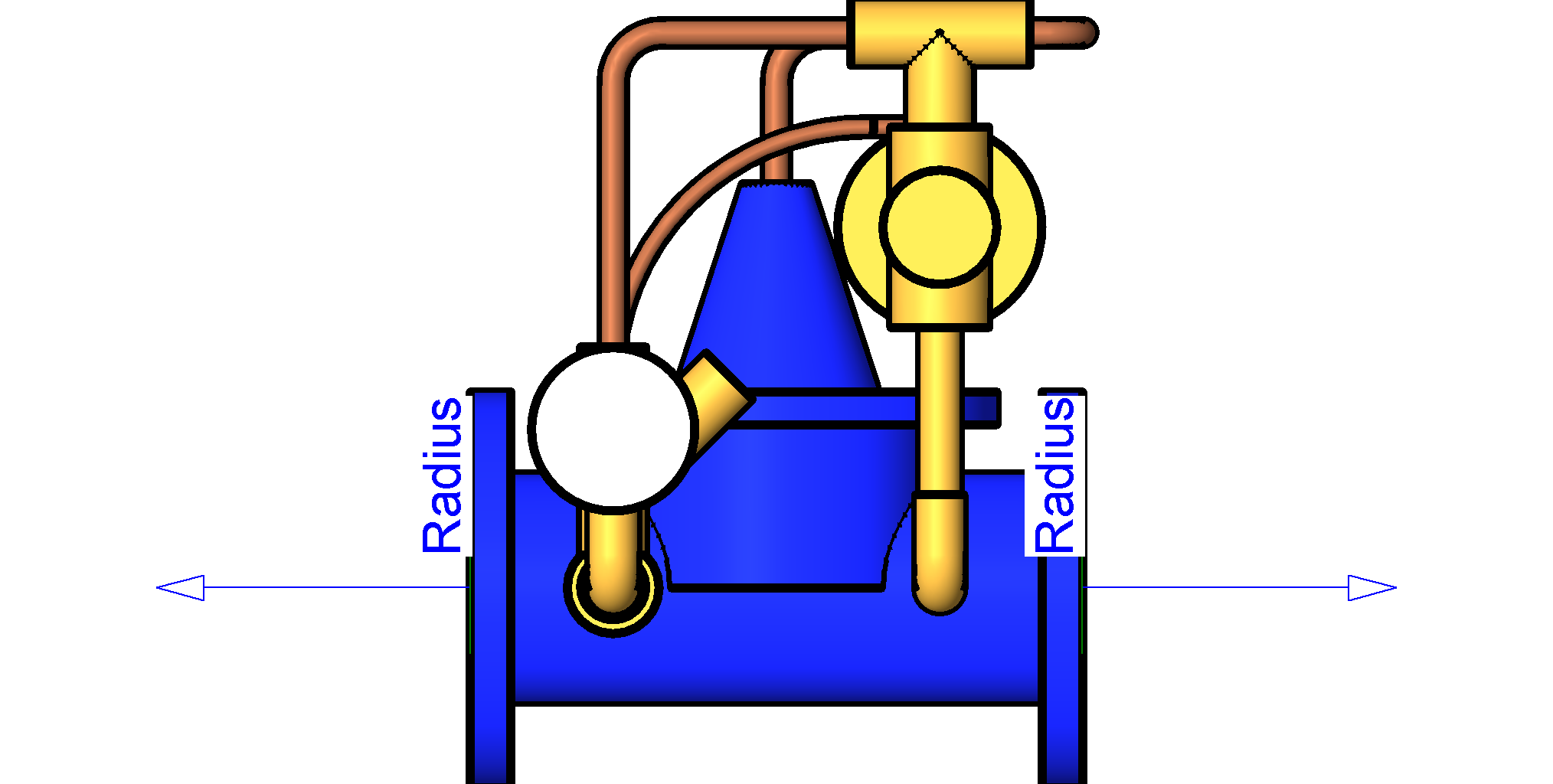

| Description | Wilkins Automatic Control Valve - Pressure Relief/ Pressure Sustaining Valve |
| Product data url | View |
| Length Inlet Port to Outlet Port | 0.4167 ft |
| Pilot Regulator Product Page URL | View |
| 1/2 Gauge Depth | 0.0417 ft |
| Right Side Horz. Length to Outlet | 0.625 ft |
| URL | View |
| DIM B Top Lip Radius | 0.2813 ft |
| DIM C Top of Cover | 0.5156 ft |
| Reduced Pressure Range | 15 - 150 psi |
| Gauge Depth | 0.0833 ft |
| Strainer Product Page URL | View |
| ACV Product Page URL | View |
| One quarter pilot tubing horz. length | 0.4896 ft |
| Type Comments | Lead-Free* Pressure Reducing Valve, ANSI Class 150 Flange, 1/2 inch model NR3XLHRSCDULU pilot regulator, 3/8 inch model SXL strainer, 3/8 inch model 850MXL ball valves |
| Strainer Specification Sheet URL | View |
| Cap Top Radius | 0.0436 ft |
| DIM X | 0.7083 ft |
| Max. Intermittent Flow | 260 (gal)/min |
| Nominal Diameter | 0.166666666666667 |
| Brass Tee Length | 0.5257 ft |
| Product Install & Maintenance Sheet URL | View |
