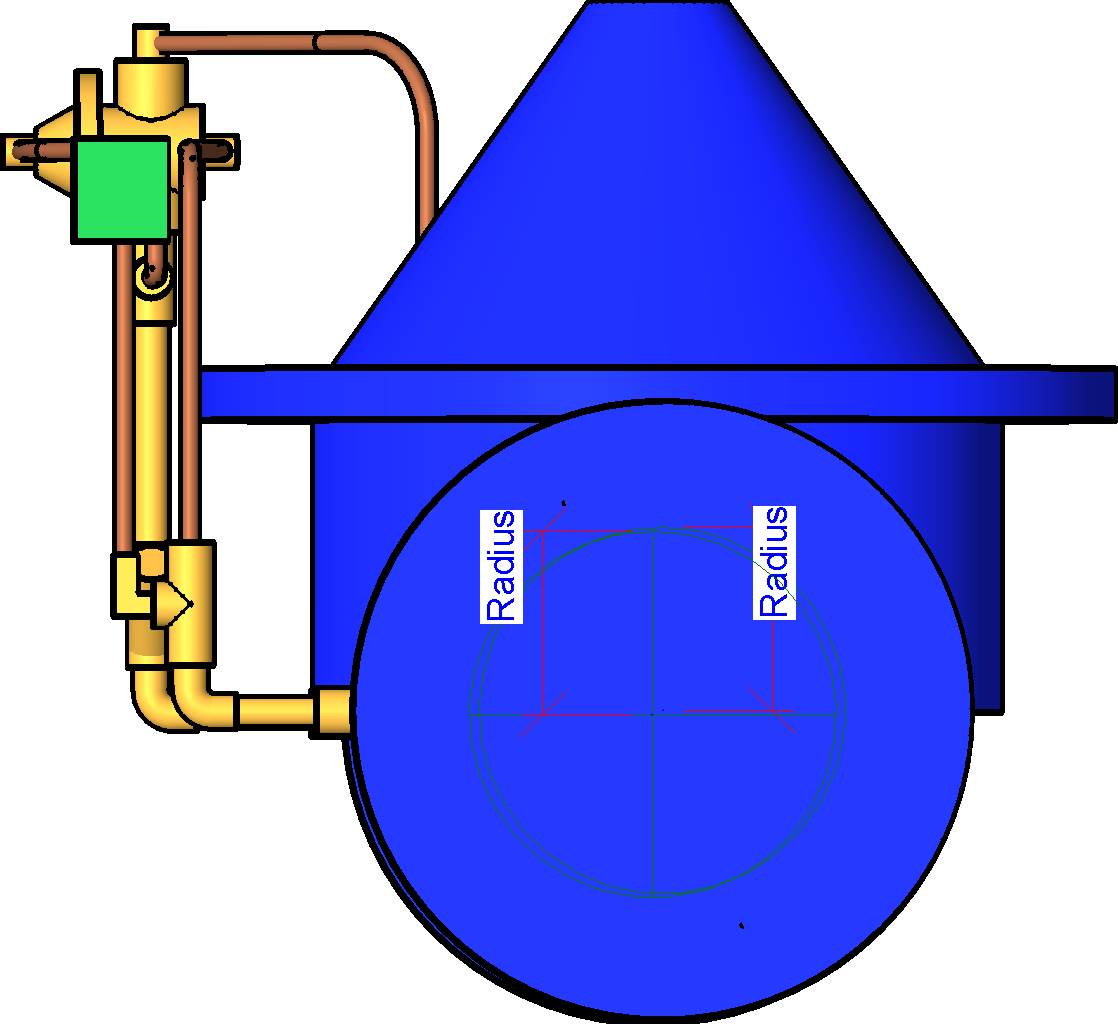

| Product data url | View |
| Product Install & Maintenance Sheet URL | View |
| Model | ZW206 |
| Top of Body | 0.4427 ft |
| Body Radius | 0.3333 ft |
| Manufacturer | Zurn Wilkins |
| DIM C Top of Cover | 1.026 ft |
| Length Inlet Port to Outlet Port | 0.7292 ft |
| Weight | 285 lbf |
| horiz length from Inlet to Outlet | 1.0833 ft |
| Cap Top Radius | 0.0833 ft |
| Elbow Angle | 29.8 deg |
| Ball Valve Specification Sheet URL | View |
| URL | View |
| Cap Base Radius | 0.4375 ft |
| Angle Cover Pipe Length | 0.3333 ft |
| Center of Inlet Tube Length | 0.7448 ft |
| Outlet Tube Height | 0.7292 ft |
| Flange Thickness | 0.1003 ft |
| Center of Body to ACL | 0.8125 ft |
| ACL Install & Maintenance Sheet URL | View |
| Standards Compliance | ANSI/AWWA C530, Lead Plumbing Law Certified by IAPMO R&T |
| Right Side Center of Tubing Dim | 0.6458 ft |
| Inlet Nipple Length | 0.5436 ft |
| Plane Angle | 49.53 deg |
| ACL Product Page URL | View |
| Assembly Code | D2090900 |
| Min. Continuous Flow | 115 (gal)/min |
| Flange Radius | 0.4583 ft |
| Application | The Zurn Wilkins Model ZW206 Solenoid Operated Control
Valve is designed to be either fully open or fully closed in
response to an electrical signal to the solenoid pilot assembly.
This valve is equipped with a 3-way electrical solenoidoperated
pilot that can be plumbed to be normally closed
(energize to open) or normally open (energize to close)
providing main valve on/off capabilities.
Valve is designed to be either fully open or fully closed in
response to an electrical signal to the solenoid pilot assembly.
This valve is equipped with a 3-way electrical solenoidoperated
pilot that can be plumbed to be normally closed
(energize to open) or normally open (energize to close)
providing main valve on/off capabilities.
Valve is designed to be either fully open or fully closed in
response to an electrical signal to the solenoid pilot assembly.
This valve is equipped with a 3-way electrical solenoidoperated
pilot that can be plumbed to be normally closed
(energize to open) or normally open (energize to close)
providing main valve on/off capabilities.
Valve is designed to be either fully open or fully closed in
response to an electrical signal to the solenoid pilot assembly.
This valve is equipped with a 3-way electrical solenoidoperated
pilot that can be plumbed to be normally closed
(energize to open) or normally open (energize to close)
providing main valve on/off capabilities. |
| Max. Intermittent Flow | 2250 (gal)/min |
| Cover Tubing Vertical Length | 0.375 ft |
| Pipe Length to Cover | 0.776 ft |
| Description | Zurn Wilkins Solenoid Control Valve |
| Center of Cover Tube Length | 0.1667 ft |
| Strainer Product Page URL | View |
| Ball Valve Length from Center of Body | 0.375 ft |
| Brass Tee | 0.2083 ft |
| Flange Diameter | 0.9167 ft |
| SOL Distance From Outlet Tubing | 0.054 ft |
| Ball Valve Product Page URL | View |
| ACV Specification Sheet URL | View |
| ACL Height | 0.2917 ft |
| DIM D Body Diameter | 0.6667 ft |
| Type Comments | Lead-Free* Solenoid Control Valve, ANSI Class 150 Flange, 1/2 inch model 3-Way Accelerator Pilot (sizes 4"-10'), 3/8 inch model SXL strainer, 3/8 inch model 850MXL ball valves |
| Strainer Specification Sheet URL | View |
| DIM B Top Lip Radius | 0.6563 ft |
| Max. Continuous Flow | 1800 (gal)/min |
| Nominal Diameter | 0.5 |
| Max Working Water Pressure | 250 lb/(in^2) |
| ACV Product Page URL | View |
| Pipe length from Body | 0.4583 ft |
| Center Body Radius | 0.3333 ft |
| Nominal Radius | 0.25 |
| Max Working Water Temperature | 140 degF |
| Order Form URL | View |
| DIM Z Overall Width Gauge Face | 0.9479 ft |
