Product Details

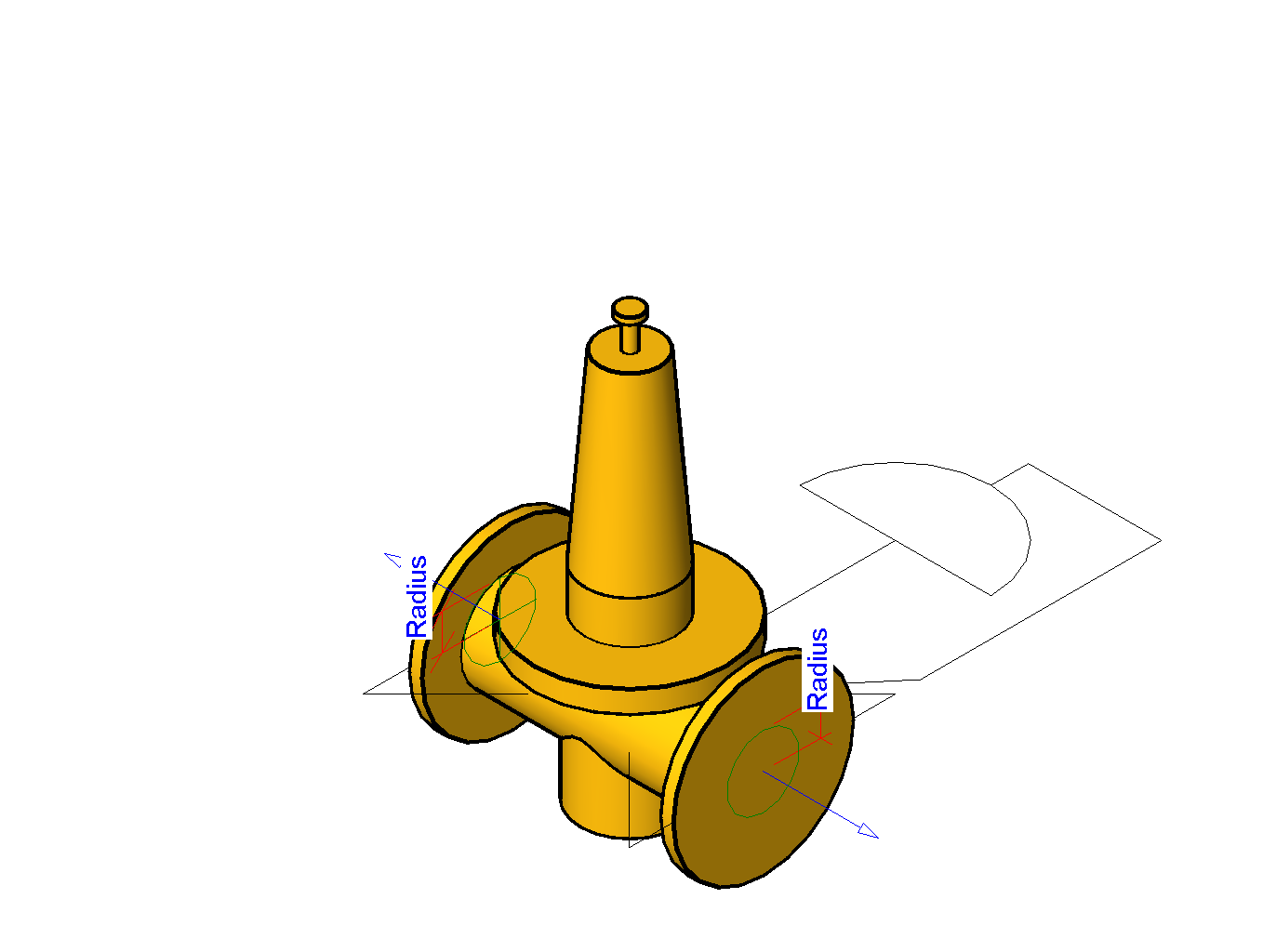

Pressure_Reducing_Valve-Zurn_Wilkins-Model_500FC_Flanged-(2-3_Inch)
Category
Pipe Accessories
Description
| Property | Value |
|---|---|
| Body Radius | 0.1165 ft |
| Nominal Radius | 0.0833 ft |
| Property | Value |
|---|---|
| Use Annotation Scale |
| Property | Value |
|---|---|
| Bell Radius | 0.2708 ft |
| Assembly Code | D2090800 |
| DimA2 | 0.4323 ft |
| Cap Radius | 0.11 ft |
| Model | 500FC |
| Hex Height | 0.0833 ft |
| URL | |
| Weight | 30 |
| DimD | 6.5 in |
| Repair Parts URL | |
| Bolt Radius | 0.0208 ft |
| Flow Factor | 1 |
| Bolt Length | 0.125 ft |
| Bell Top Radius | 0.125 ft |
| Hex Radius | 0.1501 ft |
| Fall Off | See Specification Sheet for Fall Off Curve |
| Tail | 0.429 ft |
| Type Comments | Flanged connections ANSI B16.1 Class B |
| Product Install & Maintenance Sheet URL | |
| Specification Sheet URL | |
| Bell Height | 0.0625 ft |
| Product data url | |
| DimC Flange | 0.25 ft |
| Preset Pressure | Fieldset |
| DimB | 1.25 ft |
| Bolt Head Radius | 0.0417 ft |
| Manufacturer | Zurn Wilkins |
| Flange Thickness | 0.0417 ft |
| Product Page URL | |
| DimC | 0.25 ft |
| Description | Water Pressure Reducing Valve with Flanged Connections |
| Application | Designed for installation on potable water lines to reduce high inlet pressure to a lower outlet pressure. |
| DimA | 0.8646 ft |
| Property | Value |
|---|---|
| Max Working Water Pressure | 300 lb/(in^2) |
| Reduced Pressure Range | 25 psi to 75 psi |
| Flow | 0 |
| Max Working Water Temperature | 140 degF |
| Property | Value |
|---|---|
| Nominal Diameter | 2 in |
| Length | 0.8646 ft |
| Height | 1.25 ft |
| Property | Value |
|---|---|
| Materials | Paint - Zurn - Brass |
