ACV-Zurn_Wilkins-ZW204_150lb_Flange-(112-3_Inch).rfa

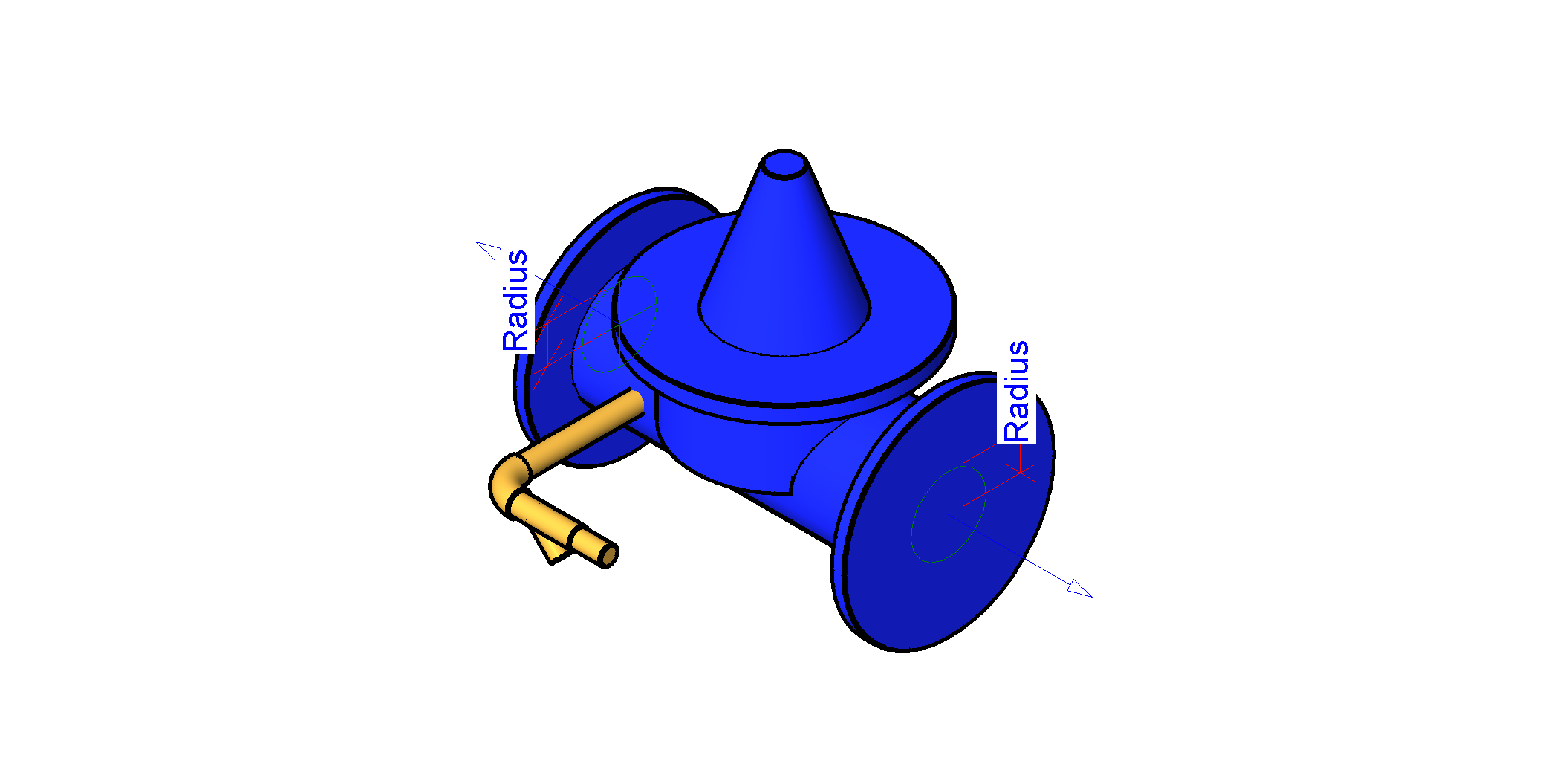

deb10125-adfe-4b4c-95cc-2f8899091a45 - 3D View - Preview.png

2 1/2"

1 1/2"

ACV-Zurn_Wilkins-ZW204_150lb_Flange-(112-3_Inch)

Introducing our exquisite collection of featured doors, meticulously crafted to redefine elegance and sophistication. Each door in this extraordinary lineup is a testament to our unwavering commitment to exceptional craftsmanship and unparalleled quality.

Featured

Contact Sales Rep

Richly detailed architectural design in a classic style.

Memoirs®

A fresh twist on simple, Shaker-style furniture design.

Tresham®

An alluring blend of craftsman furniture and fine jewelry.

Archer®

Consider a Nested single, distinctive style for total harmony

Explore Nested Collections

Consider a single, distinctive style for total harmony

Explore Collections

memoirs

tresham

Explore Nested Series

SHADOW TONES, SKY TONES, BUILDING STONE, SQUARES & RECTANGLES

Modern commercial building architectural stone veneer healthcare clinic – Buff Gray Tailored Blend

ARCTIC TONES, BUILDING STONE, SQUARES & RECTANGLES

Commercial modern architectural stone veneer healthcare clinic – Fond du Lac Country Squire & Jumpers Custom Blend

HONEY TONES, SHADOW TONES, BUILDING STONE, SQUARES & RECTANGLES

Craftsman tan blue stone veneers exterior wood beam patio interior design entrance – Spalted Oak Ashlar

ARCTIC TONES, LANDSCAPE STONE, IRREGULAR, SQUARES & RECTANGLES

Backyard landscaping outdoor patio furniture fire pit – Fond du Lac stone pavers steppers flagstone steps

ARCTIC TONES, BUILDING STONE, CUT STONE, CUSTOM CUT STONE, SQUARES & RECTANGLES

Fond du Lac Tailored Blend and Indiana Silverbuff Cut Stone

Brag Book

Designing with GDF Studio couldn’t be easier. Grab the files you need and load them into your project.

The single source of truth for interior products

GDF AEC Portal Studio

Find BIM, CAD and other technical product information for products found in our catalog.

Add products to your project and receive a detailed Project Submittal.

Add products to your project and get a comprehensive report for all available LEED credits.

Property	Value
Max Working Water Pressure	250 lb/(in^2)
Manufacturer	Zurn Wilkins
Top of Body	0.2292 ft
Length Inlet Port to Outlet Port	0.4167 ft
Assembly Code	D2090900
Nominal Radius	0.0833333333333333
Top Radius	0.1979 ft
Order Form URL	View
URL	View
Flange Width	0.0416666666666667
DIM B Top Lip Radius	0.2813 ft
Type Comments	Lead-Free* Pressure Reducing Valve, ANSI Class 150 Flange, 1/2 inch model NR3XLHRSCDULU pilot regulator, 3/8 inch model SXL strainer, 3/8 inch model 850MXL ball valves
Description	Wilkins Automatic Control Valve - Pressure Reducing
Cap Top Radius	0.0436 ft
DIM X	0.6875 ft
ACV Specification Sheet URL	View
Body Radius	0.1458 ft
Strainer Specification Sheet URL	View
Strainer Product Page URL	View
Product data url	View
Min. Continuous Flow	15 (gal)/min
Application	The Wilkins Model ZW209 Pressure Reducing Valve automatically reduces a higher inlet pressure to a steady lower downstream pressure regardless of changing the flow rate and/or varying inlet pressure. This valve is an accurate, pilot-operated regulator capable of holding downstream pressure to a pre-determined limit. When downstream pressure exceeds the pressure setting of the control pilot, the main valve and pilot valve close drip tight.
Model	ZW209
Max. Continuous Flow	210 (gal)/min
y strainer	0.25 ft
Flange Diameter	0.5 ft
DIM C Top of Cover	0.5156 ft
Cap Base Radius	0.1302 ft
Standards Compliance	ANSI/AWWA C530, Lead Plumbing Law Certified by IAPMO R&T
Product Install & Maintenance Sheet URL	View
Ball Valve Product Page URL	View
Nominal Diameter	0.166666666666667
Weight	35 lbf
Flange Radius	0.25 ft
Pipe length from Body	0.3646 ft
Top Lip Thickness	0.0417 ft
Max. Intermittent Flow	260 (gal)/min
ACV Product Page URL	View
Body Diameter	0.2917 ft
Max Working Water Temperature	140 degF
Reduced Pressure Range	15 - 150 psi
Ball Valve Specification Sheet URL	View

Property	Value
Length	0.7813 ft
Height	0.7292 ft
