Product Details

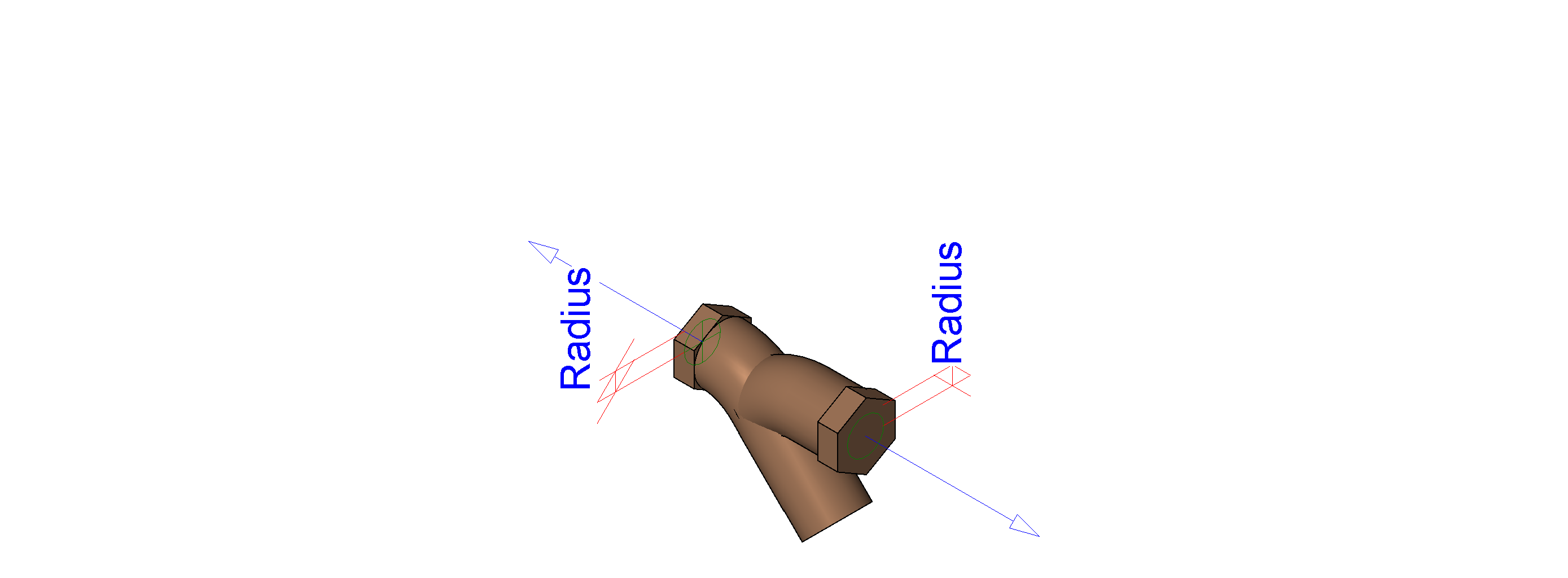

Strainer-Wye_Type-Zurn_Wilkins-Model_YBXL_Threaded-(0.5-1.25_Inch)
Category
Pipe Accessories
Description
| Property | Value |
|---|---|
| Repair Parts URL | |
| Product Page URL | |
| Manufacturer | Zurn Wilkins |
| Model | YB |
| Specification Sheet URL | |
| Standards Compliance | Lead Plumbing Law Certified by IAPMO R&T, Conformance to MIL-S-16293 |
| Angle 2 | 0.0833 ft |
| Weight | 2 |
| Symbol | 1" |
| Body Flare | 0.0822 ft |
| Assembly Code | D2090900 |
| Weight1 | 2 lbs |
| Description | Strainer |
| Type Comments | End Connections Threaded ANSI B 1.20.1 |
| Application | Lead-Free* Designed for installation on potable water lines to protect against sediment and debris. |
| Flange Thickness | 0.0459 ft |
| Product data url | |
| Insert Length | 0.2292 ft |
| URL |
| Property | Value |
|---|---|
| Max Working Water Temperature | 180 degF |
| Max Working Water Pressure | 400.0005 lb/(in^2) |
| Property | Value |
|---|---|
| Body Radius | 0.0658 ft |
| Body Diameter | 0.1315 ft |
| Nominal Radius | 0.0417 ft |
| Property | Value |
|---|---|
| Length | 0.375 ft |
| Arc Radius | 0.1416 ft |
| Height | 0.25 ft |
| Flange Width | 0.131510416666667 |
| Nominal Diameter | 0.0833 ft |
| Property | Value |
|---|---|
| Use Annotation Scale |
Product Resource download links.
