Product Details

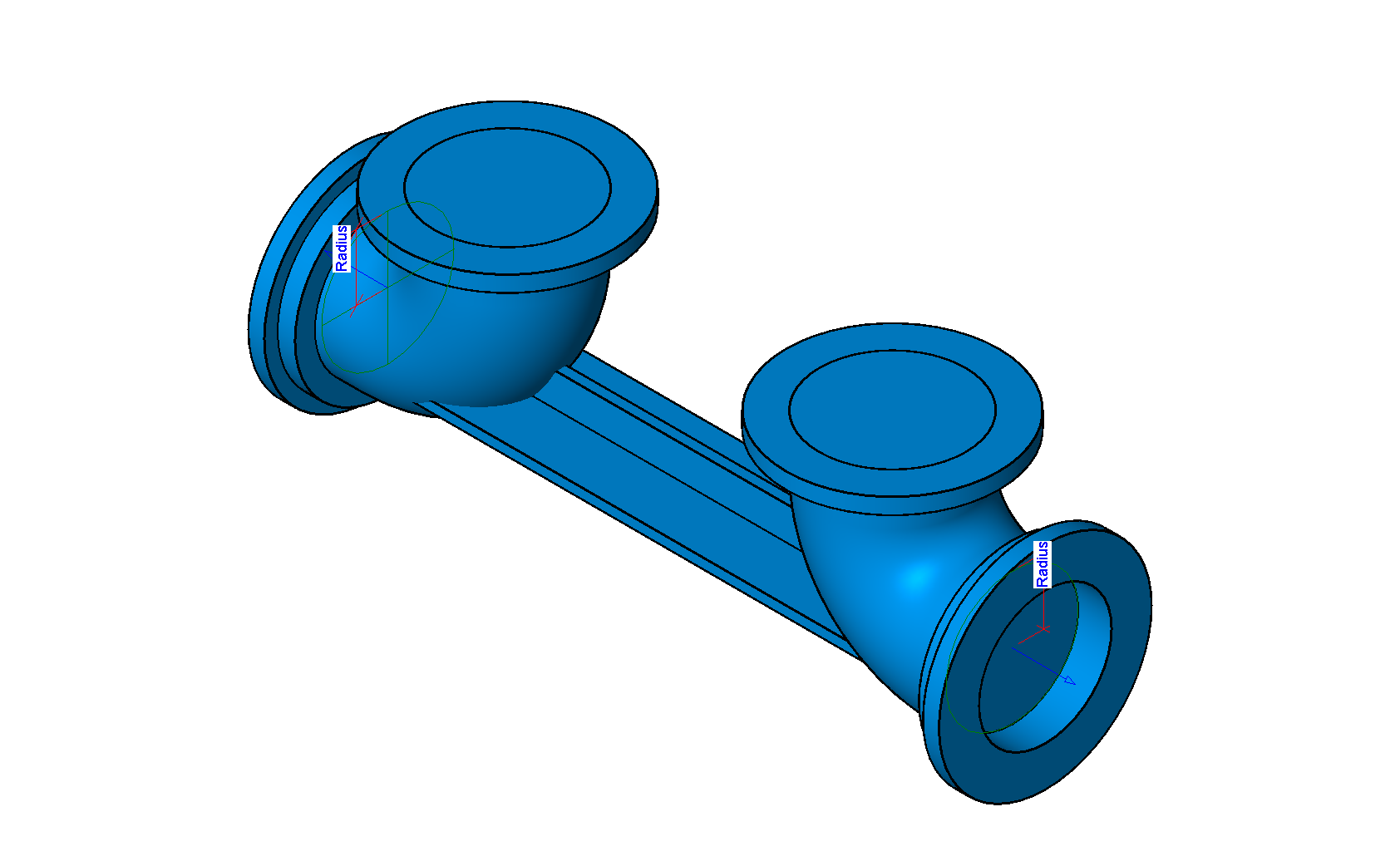

Setter-Zurn_Wilkins-Model_MJFS_Mech_Joint_by_Flanged-(3-10_Inch)
Category
Pipe Accessories
Description
| Property | Value |
|---|---|
| Beam Offset | 0.25 ft |
| Beam Width | 0.15 ft |
| Application | Designed to ease the installation of the N-Shape Wilkins Model 450 and 475 series Backflow Preventions Assemblies. |
| Beam Offset Center | 0.0833 ft |
| Elbow X Dim | 0.4583 ft |
| Weight | 90 |
| Dim B | 1.526 ft |
| Beam Thickness | 0.0417 ft |
| Elbow Y Dim | 0.5417 ft |
| Type Comments | Mechanical Joint (AWWA C153-88) by Flange (ANSI B16.1) Connections |
| Description | Lead-Free* Valve Setter |
| Flange Thickness | 0.0781 ft |
| Specification Sheet URL | |
| Beam Height | 0.1667 ft |
| Model | MJFS |
| URL | |
| Manufacturer | Zurn Wilkins |
| Product Page URL | |
| Dim A | 2.4427 ft |
| Half Dim B | 0.763 ft |
| Product data url |
| Property | Value |
|---|---|
| Max Working Water Pressure | 175 lb/(in^2) |
| Max Working Water Temperature | 140 degF |
| Property | Value |
|---|---|
| Nominal Radius | 0.1667 ft |
| Property | Value |
|---|---|
| Use Annotation Scale |
| Property | Value |
|---|---|
| Angle | 0 deg |
| Height | 0.5417 ft |
| Nominal Diameter | 0.3333 ft |
| Length | 2.4427 ft |
| Flange Diameter | 0.75 ft |
Product Resource download links.
