| Nipple Length BP | 0.4375 ft |

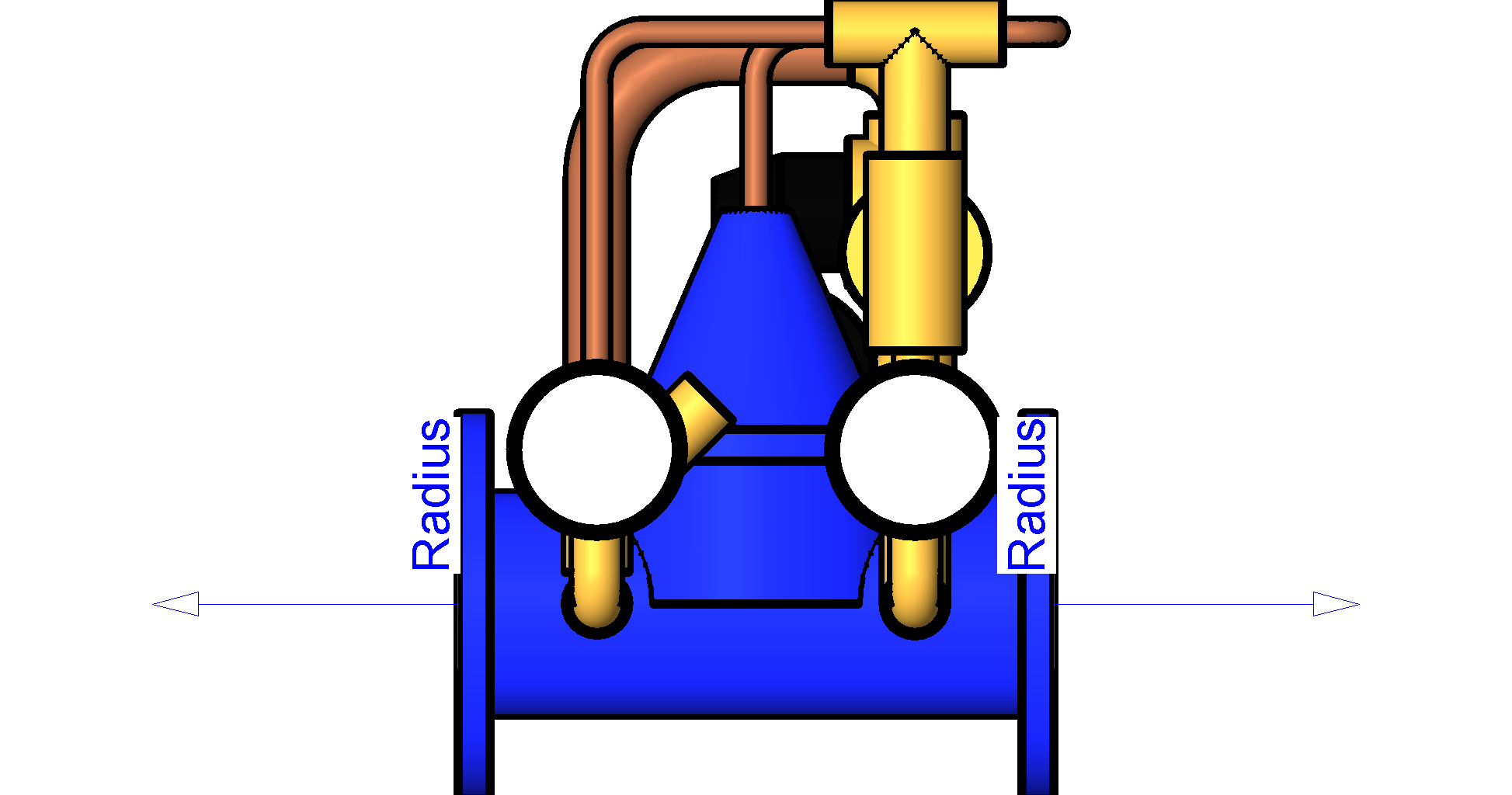

| Description | Wilkins Automatic Control Valve - Pressure Reducing Valve w/ Low Flow By-Pass |
| Gauge Depth | 0.0833 ft |
| 1/2 Gauge Depth | 0.0417 ft |
| Product data url | View |
| Max Working Water Temperature | 140 degF |
| NR3 Circle Depth | 0.0875 ft |
| DIM X | 0.75 ft |
| ACV Specification Sheet URL | View |
| Strainer Product Page URL | View |
| Min. Continuous Flow | 20 (gal)/min |
| Flange Diameter | 0.5833 ft |
| Manufacturer | Zurn Wilkins |
| Max Working Water Pressure | 250 lb/(in^2) |
| Order Form URL | View |
| Elbow Radius | 0.0156 ft |
| Pipe Length to Cap | 0.6667 ft |
| Vertical Nipple Height BP | 0.3021 ft |
| Type Comments | The Zurn Wilkins Model ZW209BP Pilot Operated Pressure
Reducing Valve with Low Flow By-pass is designed for many
applications where the reduction of high inlet pressures to
safe and stable outlet pressure is required. The pilot assembly
reacts to changes in downstream pressure allowing
the main valve to modulate between the open and closed
position ensuring a constant downstream set pressure. Once
the downstream pressure reaches the pilot setting, the main
valve will seal shut. When the main valve closes, the low flow
bypass is set to a slightly higher pressure which allows it to
handle very low flows up to 10 GPM when there is off peak
demand. (An additional bypass may be needed to handle
flows between the bypass and main valve minimum flow.) In
addition the Model ZW209BP comes standard with epoxy
coating internally and externally for corrosion protection as
well as isolation valves and pressure gauges for quick and
easy maintenance or repair. |
| Strainer Specification Sheet URL | View |
| Body Diameter | 0.3333 ft |
| Top Radius | 0.25 ft |
| Nominal Radius | 0.104166666666667 |
| NR3 | 0.2552 ft |
| Model | ZW209BP |
| Pipe length from Body | 0.4072 ft |
| Body Radius | 0.1667 ft |
| Top of Body | 0.2708 ft |
| Pilot Regulator Specification Sheet URL | View |
| Ball Valve Product Page URL | View |
| Pilot Regulator Product Page URL | View |
| Reduced Pressure Range | 15 - 150 psi |
| Application | The Zurn Wilkins Model ZW209BP Pilot Operated Pressure
Reducing Valve with Low Flow By-pass is designed for many
applications where the reduction of high inlet pressures to
safe and stable outlet pressure is required. The pilot assembly
reacts to changes in downstream pressure allowing
the main valve to modulate between the open and closed
position ensuring a constant downstream set pressure. Once
the downstream pressure reaches the pilot setting, the main
valve will seal shut. When the main valve closes, the Model
NR3 low flow by-pass remains open allowing low water flow.
The by-pass prevents downstream pressure to rise above its
set-point as flow decreases, protecting downstream components
from damage. In addition the Model ZW209BP comes
standard with epoxy coating internally and externally for
corrosion protection as well as isolation valves and pressure
gauges for quick and easy maintenance or repair. |
| ACV Product Page URL | View |
| Tube Bend Radius | 0.0625 ft |
| Max. Continuous Flow | 300 (gal)/min |
| URL | View |
| Ball Valve Specification Sheet URL | View |
| Standards Compliance | ANSI/AWWA C530, Lead Plumbing Law Certified by IAPMO R&T |
| Assembly Code | D2090900 |
| Top Lip Thickness | 0.0625 ft |
| DIM Z Overall Width/Gauge Face | 0.7656 ft |
| DIM B Top Lip Radius | 0.3359 ft |
| Max. Intermittent Flow | 375 (gal)/min |
| Elbow Height | 0.1188 ft |
| DIM C Top of Cover | 0.6146 ft |
| Vertical to NR3 | 0.2132 ft |
| Cap Top Radius | 0.0436 ft |
| Flange Width | 0.0625 |
| Flange Radius | 0.2917 ft |
| Weight | 50 lbf |
| Nominal Diameter | 0.208333333333333 |
| Cap Base Radius | 0.1667 ft |
| Length Inlet Port to Outlet Port | 0.5 ft |
