| Min. Continuous Flow | 20 (gal)/min |
| Type Comments | Lead-Free* Non-Modulating Float Operated Control Valve, ANSI Class 150 Flange, 4" - 10" model, 3/8 inch model SXL strainer, 3/8 inch model 850MXL ball valves |
| Max Working Water Temperature | 140 degF |
| Flange Radius | 0.5417 ft |
| Assembly Code | D2090900 |
| DIM B Top Lip Radius | 0.8385 ft |
| Reduced Pressure Range | 15 - 150 psi |
| Max. Intermittent Flow | 375 (gal)/min |
| Length Inlet Port to Outlet Port | 1 ft |
| Pipe length from Body | 0.4072 ft |
| Manufacturer | Zurn Wilkins |
| Nipple Length | 0.4167 ft |
| Product data url | View |
| DIM C Top of Cover | 1.2969 ft |
| Product Install & Maintenance Sheet URL | View |
| Strainer Product Page URL | View |
| Cap Base Radius | 0.75 ft |
| Max. Continuous Flow | 300 (gal)/min |
| Max Working Water Pressure | 250 lb/(in^2) |
| Cap Top Radius | 0.0436 ft |
| Flange Width | 0.0833333333333333 |
| y strainer | 0.3542 ft |
| Ball Valve Specification Sheet URL | View |
| Center of Body Radius | 0.75 ft |

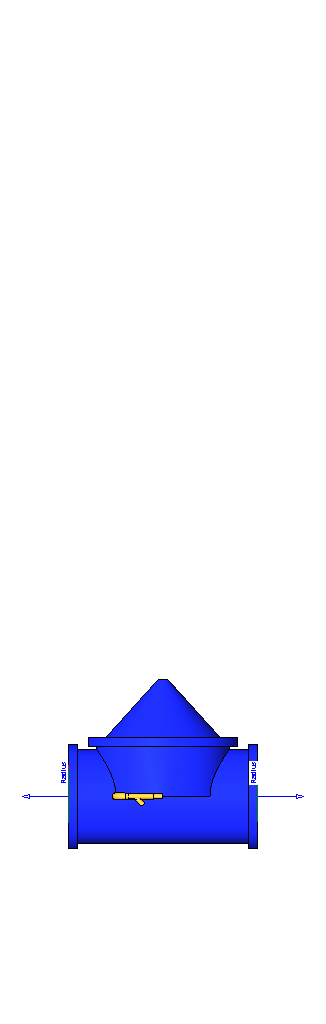

| Description | Zurn Wilkins Model ZW204 Non-Modulating Float Operated Control Valve |
| Flange Diameter | 1.0833 ft |
| Weight | 50 lbf |
| Center of Body Height | 0.5833 ft |
| Application | The Zurn Wilkins Model ZW204 Non-Modulating Float Operated
Control Valve is designed to be either fully open or fully closed
in response to the position of the float. The valve will accurately
control the fluid level of a tank, opening at a preset low point
and closing at a preset high point.
The Float Pilot Valve will be set up for remote liquid level control
as standard. The Float Pilot can be mounted to the control
valve at additional cost. |
| URL | View |
| Strainer Specification Sheet URL | View |
| Body Diameter | 0.8333 ft |
| Nominal Diameter | 0.541666666666667 |
| Orifice length | 0.1458 ft |
| Model | ZW204 |
| Ball Valve Product Page URL | View |
| Standards Compliance | Certified to NSF/ANSI 372* by IAPMO R&T, ANSI/AWWA C530, NSF Listed-Standard 61 & 372" (4"-10") |
| DIM X | 1.2969 ft |
| Body Radius | 0.4167 ft |
| ACV Product Page URL | View |
| Order Form URL | View |
| Cover Flange Thickness | 0.0833 ft |
| Nipple | 0.0293 ft |
| Nominal Radius | 0.270833333333333 |
| ACV Specification Sheet URL | View |
