Product Details

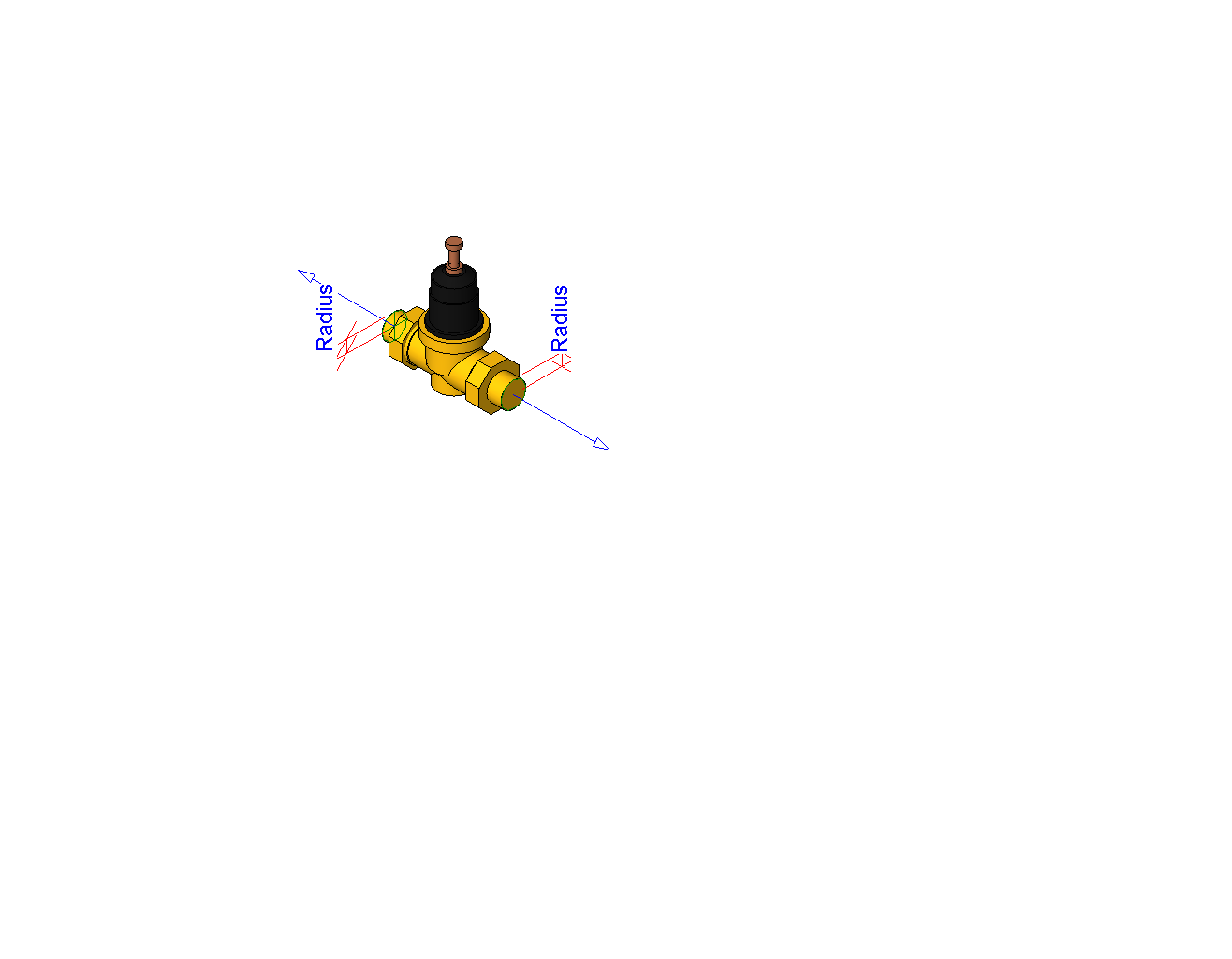

Pressure_Reducing_Valve-Zurn_Wilkins-Model_NR3XLDUC_Threaded-(0.5-2_Inch)

https://smartbim-library-development.s3.amazonaws.com/manufacturers/0ae7986b-72c1-4a8a-8c89-1da8f7c6711b/products/ed4546f6-c200-462d-82f6-fb3dfca9258e/5070eadf-7e9f-4327-9950-de9690f64993/1237f2ee-dfd0-4b07-b0f4-5b12e8bc8ee9 - 3D View - Preview.png.png

Description

Property	Value

Property	Value
Reduced Pressure Range	25 to 75 psi
Max Working Water Temperature	140 degF
Max Working Water Pressure	300 lb/(in^2)

Property	Value
Youtube clip	View
Bell Upper Base Radius	0.1042 ft
Tailpiece radius	0.0781 ft
Product data url	View
Product url	View
Bell Upper Base Length	0.1693 ft
Fall Off	See Specifications sheet for Fall Off Curve
Bell Hex Radius	0.1029 ft
Specification Sheet URL	View
URL	View
Body Base Tail Radius	0.099 ft
Body Top Radius	0.1185 ft
Polygon diameter	0.1864 ft
Nut Length	0.2604 ft
Weight	7.7 lbs
Half of Dimension A	0.3125 ft
Standards Compliance	ASSE, IAPMO, CSA
Factory Preset Pressure	50 lb/(in^2)
Body Top Seat Bell Radius	0.1563 ft
Product Page URL	View
Description	Water Pressure Reducing Valve with Integral By-pass check Valve and Strainer
Body Tail Radius	0.0352 ft
Body Thread Radius	0.112 ft
Nut Size	1 1/2 inch
Body Top Length	0.1471 ft
Body Width	0.0326 ft
Bell Base Length	0.0208 ft
Technical description	View
Application	Ideal for use where Lead-Free* valves are required. Designed for installation on potable water lines to reduce high inlet pressure to a lower outlet pressure. The integral strainer makes this device most suitable for residential and commercial water systems that require frequent cleaning of sediment and debris. The direct acting integral by-pass design prevents buildup of excessive system pressure caused by thermal expansion. The balance piston design enables the regulator to react in a smooth and responsive manner to changes in system flow demand, while at the same time, providing protection from inlet pressure changes.
Model	NR3XLDUC
Product Install & Maintenance Sheet URL	View
Manufacturer	Zurn Wilkins
Bell Base Radius	0.138 ft
Assembly Code	D2090800
Product Guid	f1ba2363-27a5-4943-b485-ec97e58a315c
Body Seat Bell Length	0.0833 ft
Bell Blend Radius	0.1029 ft
Repair Parts URL	View
Installation instructions	View
Body Center to Tail Length	0.1458 ft
Type Comments	Threaded Connections ANSI B1.20.1
