| Handle internal pipes length | 0.4297 ft |
| Type Comments | Threaded Connections ANSI B1.20.1 |
| Weight | 30.0 lb |
| Assembly Code | D4020300 |
| Body Pipes | 0.0378 ft |
| Product data url | View |
| Repair Parts URL | View |
| Manufacturer | Zurn Wilkins |
| D Bell Diameter | 0.4792 ft |
| handle pipe left | 0.026 ft |
| URL | View |
| Product Install & Maintenance Sheet URL | View |
| Masking Region | 0.375 ft |
| B Handle Diameter | 0.5208 ft |
| top base length | 0.1719 ft |
| Center to Upper height | 0.1263 ft |
| G Center of Handle wheel to Switch cover | 0.349 ft |
| body diamater | 0.433 ft |
| F Overall Lay Length | 0.2552 ft |
| Application | The Pressure-Tru™ Z3004 Series Pressure Reducing Valve is listed as a floor control valve , an indicated valve and a check valve in automatic sprnkler systems as well as a standpipe valve for CLASS I and CLASS III systems. Regulates pressure under both FLOW and NO-FLOW conditions. |
| Standards Compliance | UL, C-UL, City of Los Angeles, NYC MEA, California State Fire Marshall Listed, NFPA 14 |
| C Length from Body Center to Handwheel end | 1.3021 ft |

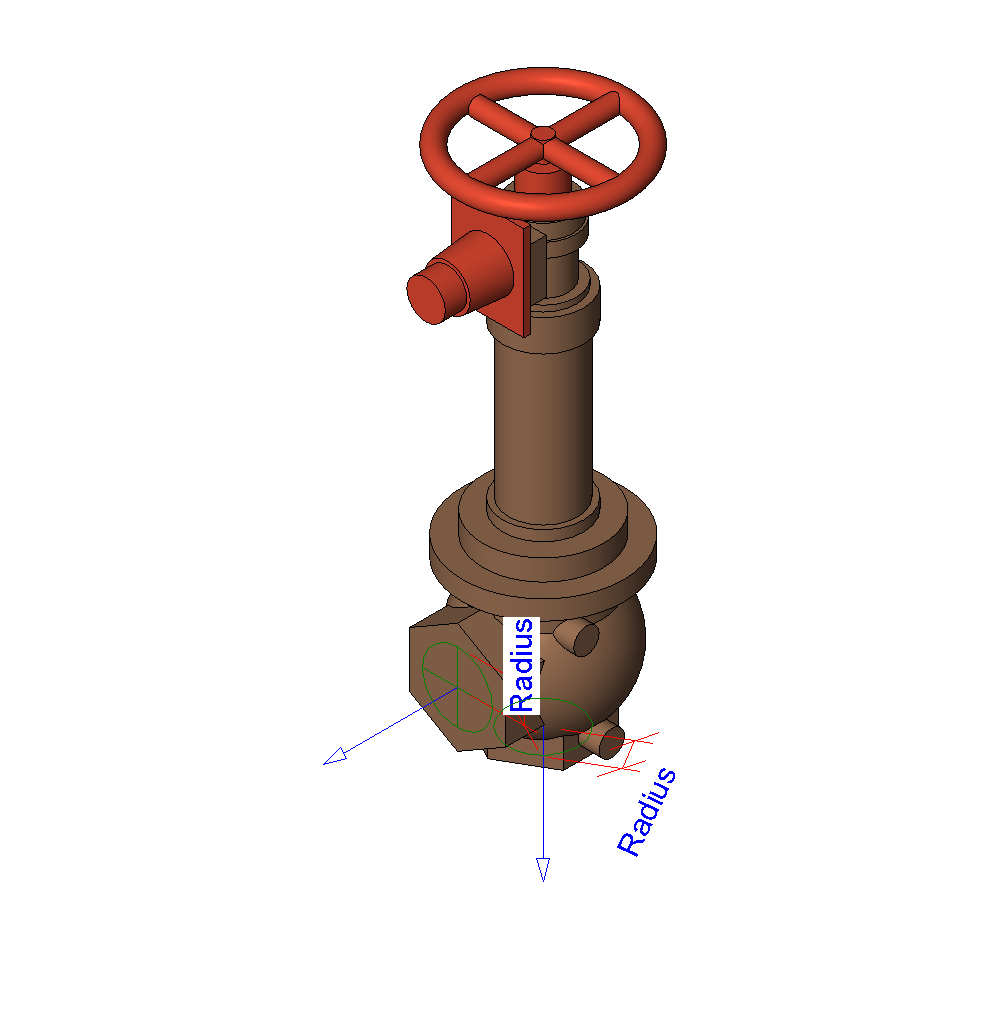

| Description | Water Pressure-Tru™ Floor Control Valve |
| handle pipe back | 0.026 ft |
| Model | Z3004SS |
| A Overal Valve Height Open Handle | 1.5313 ft |
| Specification Sheet URL | View |
| Product Page URL | View |
