Product Details

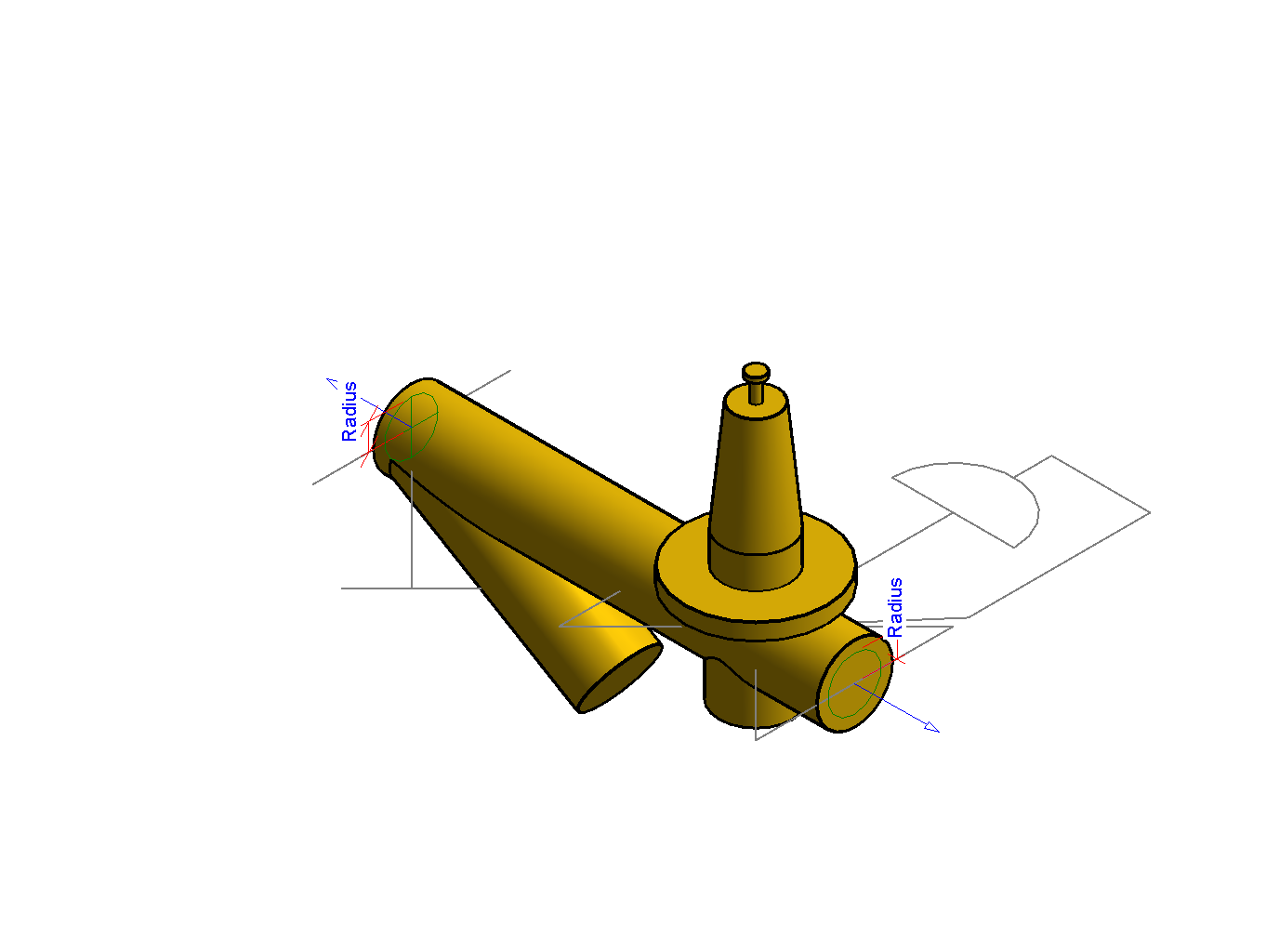

Pressure_Reducing_Valve-Zurn_Wilkins-Model_500YSBR_Threaded-(0.5-3_Inch)
Category
Pipe Accessories
Description
| Property | Value |
|---|---|
| BoltHR | 0.0313 ft |
| HexR | 0.1003 ft |
| BellH | 0.0417 ft |
| BoltL | 0.0938 ft |
| Standards Compliance | ASSE, IAPMO, CSA, City of LA |
| Max working water pressure | 300 psi |
| Product data url | |
| Product Page URL | |
| HexH | 0.0417 ft |
| URL | |
| Repair Kit | |
| Strainer Angle | 45 deg |
| DimC Strainer | 0.25 ft |
| Model | 500YSBR |
| DimE | 8.25 in |
| Max working water temperature | 180° F |
| Specification Sheet | |
| DimD | 2.75 in |
| Description | Water Pressure Reducing Valve with Integral By-pass Check Valve |
| BodyR | 0.0417 ft |
| BoltR | 0.0156 ft |
| Tail | 0.1458 ft |
| Weight | 5 lbs. / 2.3 kg |
| DimA | 0.375 ft |
| Type Comments | FNPT inlet x FNPT outlet |
| Reduced pressure range | 25 to 75 psi |
| DimB | 0.5 ft |
| BellR | 0.1146 ft |
| Manufacturer | Zurn Wilkins |
| Nominal Size | 0.5 in |
| CapR | 0.0352 ft |
| DimA2 | 0.1875 ft |
| DimC | 0.1354 ft |
| Assembly Code | D2090800 |
| Instruction Sheet | |
| NomRad | 0.0208 ft |
| BellTR | 0.0417 ft |
| Property | Value |
|---|
| Property | Value |
|---|---|
| Strainer Diameter | 0.1042 ft |
| Property | Value |
|---|---|
| Use Annotation Scale |
