K-7546-RF

https://smartbim-library-development.s3.amazonaws.com/manufacturers/0ae7986b-72c1-4a8a-8c89-1da8f7c6711b/products/f9f338c8-89be-4c7c-9430-111a84532fc5/fa2664e0-d8e6-4d8a-89fc-416f2ccf1f75/zaa75332_rgb.jpg

Brand

KOHLER Co.

Category

Flushometers

Description

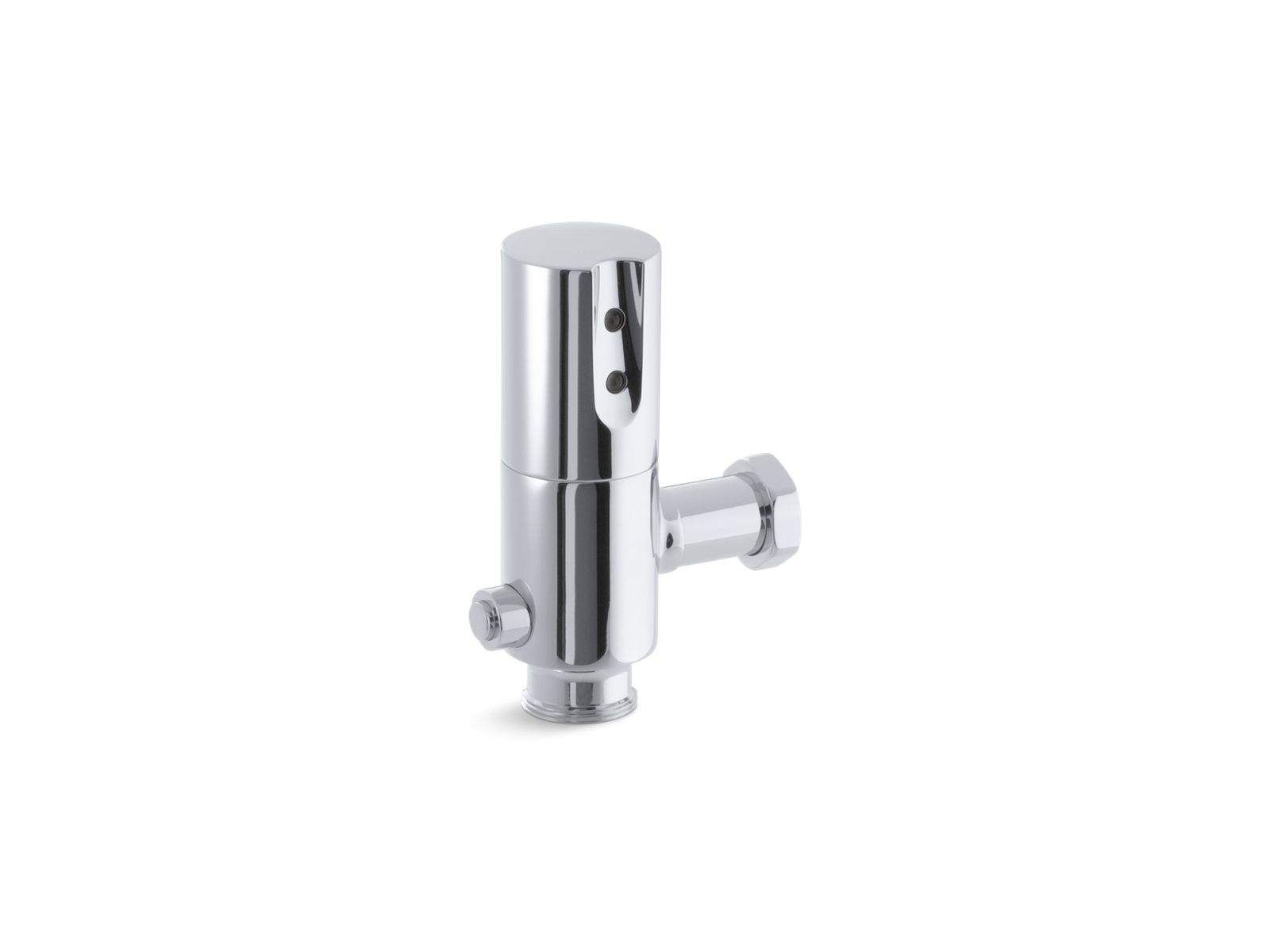

Tripoint(R) exposed hybrid 0.125 gpf washdown flushometer with retrofit for urinal installation

Features


- Powered by the 30-year Hybrid Energy System.

- Optimized and intended for use with the K-4904-ET 1/8 gpf (gallons per flush) High-Efficiency Urinal.

- Electronic infrared sensor with Tripoint(TM) technology for accurate activation.

- Intended for urinal installations with 3/4-inch top spud coupling connection.

- 1/8 gpf (gallons per flush) for low water consumption.

- Piston technology offers reliable and accurate performance across pressures.

- Activation distance is factory set - no adjustments on-site.

- Chloramine resistance on all rubber exposed to waterway.

- Manual courtesy flush button (works without DC power).

- 24-hour sentinel flush operates automatically if unit not flushed for 24 hours.
